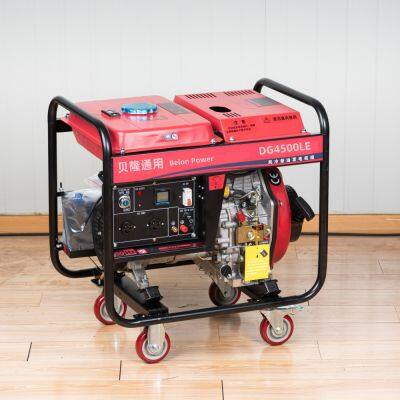

| Model | DG4500LE |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 |
|
| Rated Power( KW) | 2.8 3.3 |
| Max. Power(KW) | 3 3.5 |
| Rated Output Current（A ) | 12 14 |
| DC Output | 12V 8.3A |
| Phase | Single phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5L |
| Engine Model | 178FE |
| Start Method | Electric start |
| Engine Type | Single cylinder、4 stroke、Air-cooled、Vertical |
| Bore*Strokke[mm] | 78*62 |
| Displacement | 0.296L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 |
| Power [Kw] | 3.7 |
| Oil Capacity[L] | 0.75 |
| Fuel Consumption[g/kwh] | ≤270 ≤275 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control |
| Intelligent digital display panel |
| Size [mm] (L*W*H) | 660*470*565 |
| Packing Size [mm] (L*W*H) | 680*480*590 |
| Net Weight/Gross Weight[Kg] | 81.7/84.1 |
