Surface Grinder

Product Description

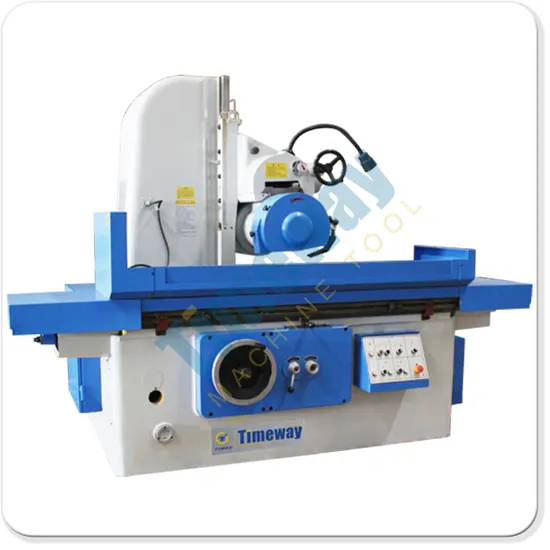

Saddle Moving Type Surface Grinding Machine

Model:
GS-300 GS-300A GS-300B GS-300C

* GS-300A: max. processing height 400mm
* GS-300B: max. processing height 800mm
* GS-300C: max. processing height 1200mm
Standard Accessories:
Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser rest (without diamond pen), standard wheel, leveling wedges and foundation, electro magnetic chuck, operation manua(English edition).

Optional accessories:
Wheel balancing stand, demagnetizer, air-cooled machine

Specification		Unit	Model
			GS-300	GS-300A	GS-300B	GS-300C
Work table	Width	mm	300
	Length	mm	1000	1000/1600/2200/3000/4500
Max processing dimension	Width	mm	300
	Length	mm	1000/1600/2200/3000/4500
	Height	mm	400	400	800	1200
Max distance between spindle center line and worktable surface		mm	575	575	975	1375
Longitudinal moving speed of worktable		m/min	3-27
T-slot number * W		mm	3*18
Wheel head cross moving	Consecutive feed speed	m/min	0.5-4.5
	Intermittent feed speed	mm/t	3-30
Vertical moving of wheel head	Rapid speed	mm/min		400
	Hand wheel feed	mm/gra	0.005
Wheel head motor	Power	kw	5.5
	Rotation speed	r.p.m	1440
Total power		kw	9/11
Max loading capacity of worktable (with chuck)		kg	470	470/750/1030/1440/2100
Wheel size(OD*W*ID)		mm	350*40*127
Machine dimension	Length	mm	2860	2860/4250/5750/7880/12170
	Width	mm	1845
	Height	mm	2030

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
