Main Features
● Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
● Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation;
● Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;
● Independent power take off device, smooth transmission, large capacity;
● Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
● Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
● Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
● Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
● New streamlined appearance, generous, modern, fashion;

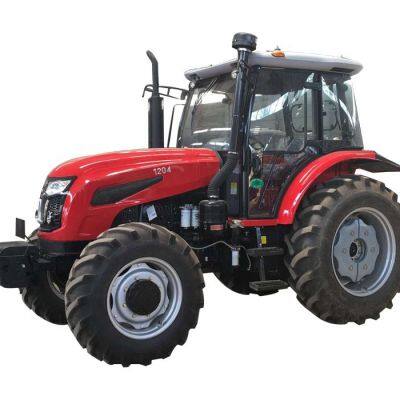

| Tractor Model | 1204 |
| Drive Type | 4×4 |
| Overall Dimension L×W×H(mm) | 5040×2255×2870 |
| Wheel base(mm) | 2688.5 |
| Front wheel tread(mm) | 1672-2003 |
| Rear wheel tread(mm) | 1662-2262 |
| Min. ground clearance(mm) | 470 |
| Min. steering radius | 7 |
| Min. operating weight (KG) | 4850 |
| Gearbox gears number | 12/4 |
| Speed | Forward(Kw/h) | 29.63-2.19 |
| Reverse(Kw/h) | 13.83-4.72 |
| Engine | Model | LR6M5U22/0882E |
| Rated power (Kw) | 88.2 |
| Type | 6 cylinders, in line, water cooling, 4 strokes, direct injection, natural aspiration |
| Rated speed (r/min) | 2300 |
| Tires spec. | Front tires | 14.9-26 |
| Rear tires | 18.4-38 |
| Steering Type | Full hydraulic front wheels steering |
| Max. lifting force( KN ) | ≥28 |
| Front / rear Ballast (KG) | 500/300 |
| Control type of ploughing depth | Height control & flotation control |
| PTO | Type | Rear-mounted, Independent type |
| Speed (r/min) | 540/1000 |
| Power(Kw) | 71.25 |
| Max. traction force (KN) | 27 |
>>
