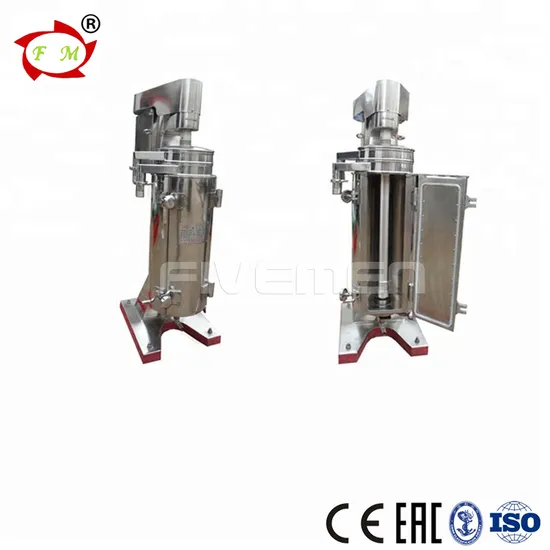

Nano Particles Tubular Centrifuge Separator

Product Description

Why choose us? 1. FIVEMEN has been engaged in the purification technology and its application for more than decades. We have our own R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.
Product Description
The Feature
The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has t types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.
GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.
GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.
The Application
It has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um,which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products
Technical parameters

Model	GQ75	GQ105	GQ145
Drum speed(r/min)	20000	16000	14000
Max centrifuge force(R.C.F)	16700	15050	15900
Drum inner diameter(mm)	75	105	145
Drum effective length(mm)	285	742	730
Solid volume in drum(L)	2	6	9
Stuff inlet pressure (kg)	>1.5	>1.5	>1.5
Capacity(water flux)(L/h)	20~200	20~1200	500~1500
motor powder(KW)	1.5	3	3
Dimensions(mm*mm*mm)	660*390*1200	760*450*1680	890*580*1670
Stuff inlet diameter(mm)	12	12	12
liquid outlet diameter(mm)	32	38	32
liquid outlet height(mm)	630	880~940

Detailed images
