Product Details
Product Description
Product Description
Introduction

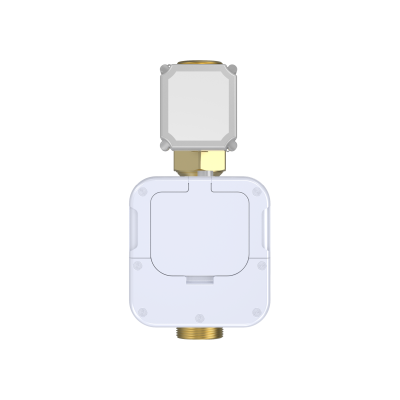

The Cubic ultrasonic water meter, designed for residential and commercial applications, delivers exceptional accuracy in measuring both potable and non-potable cold water, including challenging conditions such as irrigation systems and water containing small particles. It also supports customized solutions for hot water applications.
Housed in a compact, tamper-proof, weatherproof, and UV-resistant casing, the Cubic ultrasonic water meter is especially robust, durable, and suitable for challenging climates. Unlike mechanical meters, the ultrasonic technology is unaffected by suspended particles in the water, making it a superior choice for reliable and long-lasting performance.
And ultrasonic water meter significantly enhances low flow measurement accuracy, offers long-term stability, and maintains the same turn-down ratio when installed in both horizontal and vertical orientations.
With optional wireless communication functions such as GPRS, NB-IoT, LoRaWAN, and LTE, the Cubic ultrasonic water meter supports remote reading of water consumption and status information. This enables a highly responsive infrastructure, allowing for immediate action. The meter also offers customized integrated solutions to facilitate data transmission to utility cloud platforms over private or public networks.
Designed for applications requiring high accuracy and long life, this advanced all-digital technology provides precise measurements without moving parts and high resistance to magnetic interference. Ultrasonic water meter ensures optimal revenue and consistent performance over time.
Features
1. No moving parts, ensuring long-term accuracy and low pressure loss.
2. High turn-down ratio for accurate low-flow measurements; customizable R500 option.
3. IP 68 rating, ideal for outdoor installations.
4. Up to 10 years of battery life.
5. 9-digit LCD for high-precision readings and versatile display options.
6. Local optical port for easy parameter reading and troubleshooting.
7. Integrated wireless communication module for remote monitoring and data collection.
8. Self-diagnostics and alarms to reduce failures and minimize downtime.
9. Reverse flow is separately accumulated, guaranteeing precise recording of all water usage.
10. Alarms for active leaks, theft, backflow, meter damage/tampering, flow rate issues, and battery life indication.
Specifications
| Specification | DN32
| DN40
|
| R Value (Q3/Q1) | 250
|
| Minimum Working Flow (Q1) | 0.04
| 0.064
|
| Boundary Flow (Q2) | 0.064
| 0.1024
|
| Maximum Working Flow (Q3) | 10
| 16
|
| Overload Flow (Q4) | 12.5
| 20
|
| Measurement Precision | Class 2 |
| Cumulative Volume Resolution | 0.001m3 (User mode)
0.001L (Test mode)
|
| Current Flow Rate Resolution | 0.0001m3/h (User mode)
0.0001m3/h (Test mode)
|
| Climatic and Mechanical Environments | Class O (outdoor installation) |
| Electromagnetic Environment Level | E2 |
| Temperature Level | T30 |
| Protection Level | IP68 |
| Pressure Level | MAP16 |
| Pressure Loss Level | △p40 |
| Register Type | LCD 9 digits + icons, straight reading, permanently sealed electronic LCD |
| Register Capacity | 100,000 cubic meters |
Sensitivity Level of Upstream/
Downstream Flow Field | U5/D3 |
| Battery | 10 years |
| Sensitivity to Installation | H/V |
| Wireless Communication | GPRS |
| Data Storage Duration | 720 hours for hourly data
120 days for daily data
120 months for monthly data |
| Water-Proof | IP68 |
>>
