Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/

Product Description

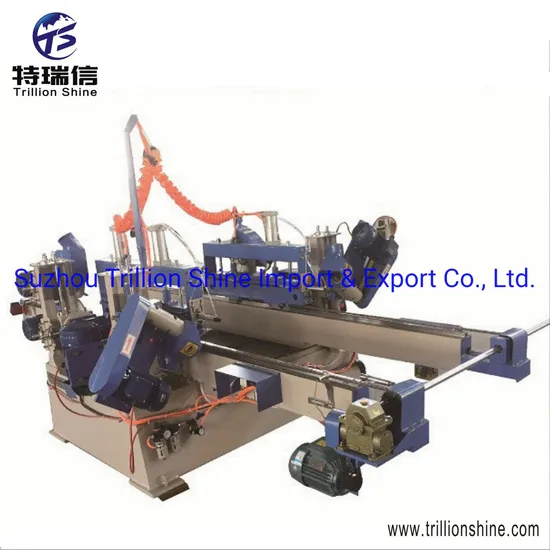

Double end-tenoner for chevron flooring
It is used for chamfering and making the tongue and groove for chevron flooring.
Main Features
High precision production processing.
Feeding by frequency conversion control.
Adopts advanced linear guide.
Uses 8 units of pneumatic cylinders to pinch raw board;
All adjusting shafts are equipped with counters
The chain and guides lubricated by a self-oil feeder

Technical specifications

Processing 45 degree cuts	Length approx. 410-1050 mm Width approx. 550-100 mm
Processing 60 degree cuts	Length approx. 350-950 mm Width approx. 600-120 mm
Processing 90 degree cuts	Length approx. 300-900 mm Width approx. 800-900 mm
Processing thickness	Within 50 mm
Motor for Saw blades	2.2 kw x 4 units
Saw blades rotation speed	2840 rpm
Tilting angle saw blades	0-20°
Saw blade 1	OD: 300 mm, ID:25.4 mm, 4 pieces
Saw blade 2	OD: 250 mm, ID:25.4 mm, 1 piece
Motor for mortising tools	3kw x 2 units
Notching tool rotation speed	8000 rpm
Feed motor	1.1 kw, Inverter control
Inverter	Taiwan Shihlin
Feed speed	0-10 m/min adjustable
Dia of sawdust pipe	100mm
Dia of suction inlet	100mm
Photoelectric switch	Omron
Overall dimensions	3200 x 2300 x 1400 mm
Net weight	about 2000 kg

Detail photos:
FAQ
1. Can we use this machine for 90 degree cuts, 30 degree cuts, and 45 degree cuts?
Yes, you can use this machine for 90 degree cuts, 30 degree cuts, and 45 degree cuts...just need to change level blocks.
2. What tooling comes with the unit. Does it come with cutting tools and saw blades? What type of tooling is it? Insert, high speed steel, diamond?
Saw blades (5pcs.) will come with the machine, the material is tungsten steel(hard alloy).
Customers prepare the cutting tools by themselves because the standard will be different for different markets and different kinds of flooring, even tongue and groove are different between laminate flooring and solid wood flooring
3. Can you ship cutting tools with the machine
If you need us to ship cutting tools with the machine, please send us the drawings of cutting tools or courier your flooring sample to us.
What services to offer:
1. Provide customerization.
2. One year warranty for the machine. Liftetime after-sales service and technical support.
3. Professional team for guiding installation& commissioning.

---
