PVC Fire Hose Pipe Fabric

Product Description

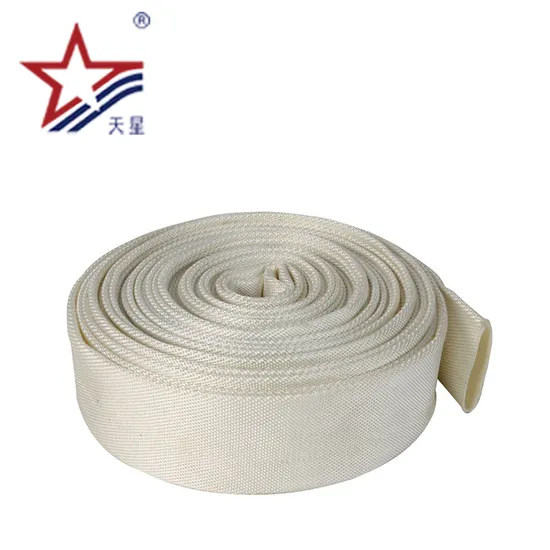

PVC fire hose pipe fabric
1)The lining of fire hose is PVC, Copy Rubber,TPU .
And the jacket of hose is woven by high intensity of polyester filament or polyester short-fiber( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose.
The canvas hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) We supply different color lining of fire hose :White, blue, black, etc or according to your requirement.
6) We supply different length of firehose : 10m,15m,20m,25m,30m or according to your requirement.
7)The fire hose is packed by poly bag and cartons.
8)The quality of fire hose is guranteed by CE,CCCF, ISO9001:2008
9)The hose use in fire fighting or agriculture or Industry.

Diameter (Inch/mm)	Working Pressure (MPa/BAR/PSI)	Testing Pressure (MPa/BAR/PSI)	Bursting Pressure (MPa/BAR/PSI)	Length (Meter)
1 25	0.8/ 8 /120 1.0/10/150 1.3/13/195 1.6/16/240 2.0/20/300	1.2/12/180 1.5/15/220 2.0/20/300 2.4/24/360 3.0/30/450	2.4/24/350 3.0/30/450 3.9/39/580 4.8/48/720 6.0/60/900	10 15 20 25 30
1-1/2 40
2 50
2-1/2 65
3 80
3-1/2 90
4 100
4-1/2 115
5 125
5-1/2 140
6 15

---
