Manufacture Mechanical Automatic Lin-Pack Vacuum Price Chicken Pickles Sealing Pouch Packing Machine

Product Description

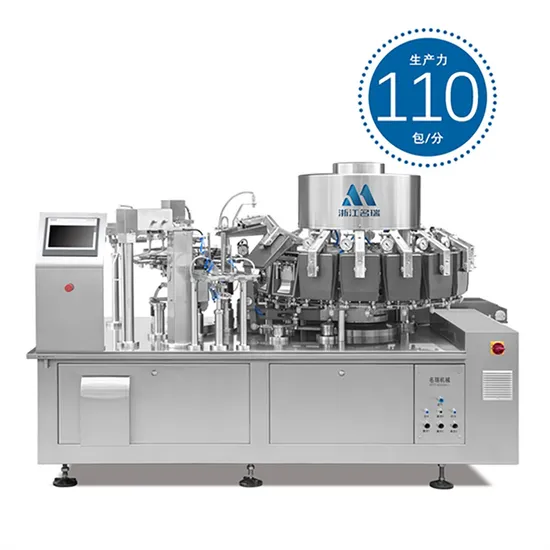

Automatic Food Rotary Vacuum Pouch Packing Machine
Main Function :
Pick up Bag -Open bag -Fill Product -Vacuum - Seal
Application :
Pickles, Peanut , Nuts , Fish, Meat , Rice , Fish Ball , Meat Ball , Cooked Food , Daily commodities, etc.
Suitable Pouch Type:
All type of heat sealable performed side seal bags, block bottom bags, zip-lock bags, stand-up pouch with or without spout etc.
Technical Parameter:

Model	MRZK-100	MRZK-130	MRZK-160	MRZK-240	MRZK-260	MRZK-300
Bag Width(mm)	55-100	55-130	80-160	130-240	140-260	190-300
Bag Length(mm)	<180	60-180	<240	<320	<360	<450
Max.Filling	1000g	1000g	2000g	2000g	2000g	2500g
Speed(bags/min)	≤100	≤85	≤55	≤50	≤40	≤35
Power	5kw	5kw	5kw	5kw	5kw	5kw
Dimension(L*W*H)	2750*1480 *1600	2100*1400 *1700	2500*1550 *1600	2700*1624 *1674	2900*1624 *1700	3100*1724 *1800
Weight	2500kg	2500kg	2800kg	3000kg	3500kg	4000kg
We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag Size required.

Machine Features :
1. Using high technology such as micro computer display and graphic touch panel, the machine can be easily operated and maintained.
2. Being high-performance and high-durability, the filling machine rotates intermittently to fill the product easily while vacuum machine rotates continuously to enable smooth running 3. The width of grippers in filling machine can be adjusted at once by a motor while those in the vacuum chambers are needn't to adjust. The main section of machine are made of stainless steel for excellent durability and hygiene. 4. All filling zone are washable. 5. Weighing machine and liquid&paste doser can be combined with this machine Status in the vacuum chamber can be checked through the transparent plastic vacuum shell lids.
Machine Description:

Safety Measures	1. No bag - no filling- no sealing, Bag opening miss- no filling-no sealing,machine alarm. 2. Machine stop or alarm when the air pressure is abnormal. 3. Error position display at the control panel 4. Outside of the machine and all the parts which touch production all made by stainless steel. 5. The doors are equipped with safety proximity sensors. 6. Machine surface can be washed by water and brushed by cloth.
Work Process	Step 1 : Giving Bag 2 : Date Printing (option) 3 : Opening Bag 4 : Filling 1 5 : Filling 2(Option)Station 6 : Buffering 7 : Vacuum and sealing 8 : Forming and Output
Stations are based on customer requirements for adjusting.

COMPANY INFORMATION
5 INVENTION PATENTS & 58 UTILITY PATENTS
WITH CUSTOMERS
OUR SERVICE / WHY CHOOSE US?
The machine can be remote controlled after it connect the Ethernet ,. If any problems with the machine/programming,we can connect the machine and check the problem in our factory directly. It Improves the after-sales service efficiency.
1.One Year Warranty, As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement, Don't worry about the parts damaged or not sell after the machine is sold. we have a field factory with hundreds of employees to serve you.
3.Engineer Assignment, Lifelong maintenance.
4.Online Instruction,We open online services,our engineers will be the first time for a one-to-one troubleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
FAQ QHow can I know your machine is designed for my product?
AYou can Send us product samples and Have a test on our Machine
QDo you test all your goods before delivery?
AYes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.
QDo you have any technical supports?
AYes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
QHow can I know the machinery quality before shipping?
AWe will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.

IF YOU HAVE ANY OTHER QUESTIONS, PLEASE CONTACT US !

---
