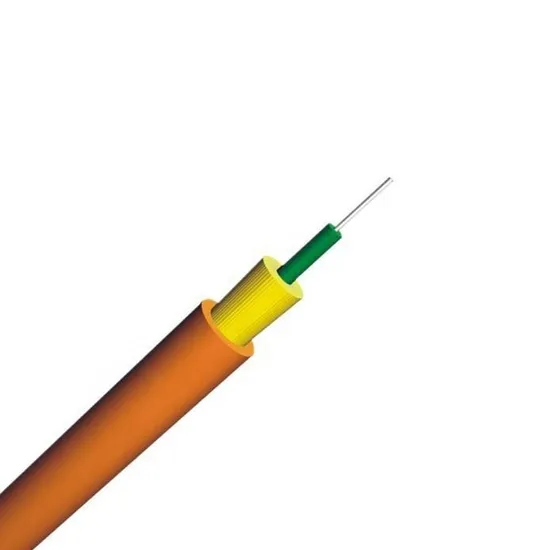

Features | ||||
•Tight buffer fiber ease of stripping | ||||
| •Tight buffer fiber have excellent falme-retardant perfomance | ||||
| •Aramid yarn as strength member make cable have excellent tensile strength | ||||
| •The jacket anti corrosion anti-water,anti-ultraviolet radiation,flame-retardant and harmless to environment | ||||
| •Flat structure ensure compact arrangement of fibers | ||||
| •All dielectric structure protect it from electromagnetic influence | ||||
| •Scientific design with serious processing art |
| Technical Parameter | |||||||
| No. of cable | 6 | ||||||
| Fiber Model | G.652D | ||||||
| Design(StrengthMember+Tube) | 1+6 | ||||||
| Central Strength Member | Material | FRP | |||||
| Diameter(±0.06)mm | 2 | ||||||
| Tight lines | Material | PVC/LSZH | |||||
| Thickness(±0.03)mm | 0.32 | ||||||
| Diameter(±0.06)mm | 0.9 | ||||||
| Strength Member | Material | Aramid Yarn | |||||
| Inner Sheath | Material | PVC/LSZH | |||||
| Thickness(±0.2)mm | 0.4 | ||||||
| Diameter(±0.2)mm | 2 | ||||||
| Outer Sheath | Material | PVC/LSZH | |||||
| Thickness(±0.2)mm | 1 | ||||||
| Cable Diameter(±0.2)mm | 8 | ||||||
| Cable Wetght(±10)kg/km | 66 | ||||||
| Attenuation | 1310nm | dB/km | 0.8 | ||||
| 1550nm | 0.6 | ||||||
| Allowable Tensile Strength | Short Term | N | 660 | ||||
| Long Term | 200 | ||||||
| Allowable Crush Resistance | Short Term | N/100mm | 1000 | ||||
| Long Term | 300 | ||||||
| Min. bending radius | Without Tension | 10.0×Cable-φ | |||||
| Under Maximum Tension | 20.0×Cable-φ | ||||||
| Operation Temperature range(ºC) | -10~+40 | ||||||
| Requirement for Order | |||||||
| (1) Fiber sort: Single mode:G652D,G657A1,G657A2, Multi mode:OM1,OM2,OM3,OM4. | |||||||
| (2) Fiber brand: YOFC, Corning, Fiberhome, Fujikura ,OFS etc. | |||||||
| (3) Jacket material: PVC,LSZH ( can be required). | |||||||
| (4) The fiber and tube color: according to stranded color, can be required. | |||||||
| (5) Length of cable: generally is 2KM/drum, can be required. | |||||||
| (6) Other requirement: can be negotiated. | |||||||
| Fiber optical Characteristic (after cable) | |||||||
| Fiber type | Attenuation | Bandwidth | Effective modal bandwidth | 10 Gb/s Link Length | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/ | 850nm | 850nm | ||
| Typical | Maximum | Typical | Maximum | 1300nm | |||
| Unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m |
| G652D | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A1 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A2 | 0.4/0.3 | 0.5/0.4 | / | / | / | / | / |
| G657B3 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| 62.5/125 | / | / | 3.5/1.0 | 3.5/1.5 | ≥160/500 | / | / |
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥200/500 | / | / |
| OM1 | |||||||
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥500/500 | / | / |
| OM2 | |||||||
| OM3-150 | / | / | 3.0/1.0 | 3.5/1.5 | ≥700/500 | ≥950 | 150 |
| OM3-300 | / | / | 2.5/0.8 | 3.0/1.0 | ≥1500/500 | ≥2000 | 300 |
| OM4-550 | / | / | 2.5/0.8 | 3.0/1.0 | ≥3500/500 | ≥4700 | 550 |
