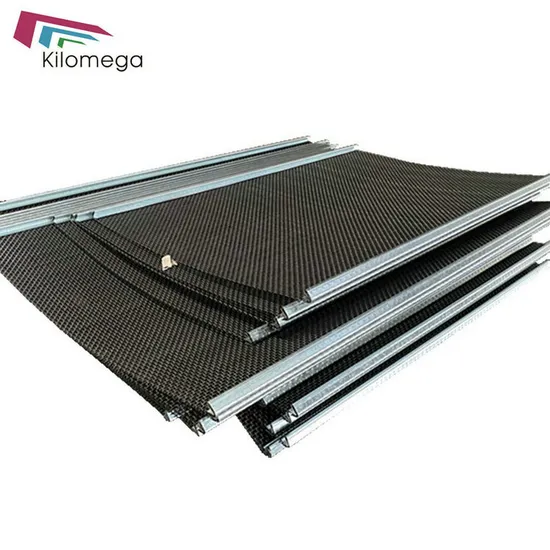

Quarry Stone Crusher 65mn Hooked Vibrating Screen Mesh

Product Description

Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications. 1. Angle: 30 degrees, 45 degrees 2. Crimped wire mesh Shape: v-shaped, u-shaped 3. Hook crimped woven wire mesh Hook type: positive check, positive check 4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire. 5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped 6 .Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave. 7 . Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.

Aperture mm	Aperture Tolerance mm		Wire mm	Edge Length mm		Weight kg/m2
	Minimum	Maximum		Minimum	Maximum
101.60	98.55	104.65	12.70	12.70	50.80	17.92
88.90	86.23	91.57	12.70	12.70	44.45	20.16
76.20	73.91	78.49	12.70	12.70	38.10	23.04
63.50	61.60	65.41	12.70	12.70	31.75	26.88
63.50	61.60	65.41	9.19	9.19	31.75	14.76
57.15	55.44	58.86	9.19	9.19	28.58	16.17
50.80	49.28	52.32	12.70	12.70	25.40	32.26
50.80	49.28	52.32	11.10	11.10	25.40	25.28
50.80	49.28	52.32	9.19	11.10	25.40	17.88
50.80	49.28	52.32	7.92	7.92	25.40	13.57
44.45	43.12	45.78	9.19	9.19	22.23	20.00
44.45	43.12	45.78	7.92	7.92	22.23	15.21
41.28	40.04	42.51	9.19	9.19	20.64	21.25
41.28	40.04	42.51	7.92	7.92	20.64	16.19
38.10	36.69	39.24	9.19	9.19	19.05	22.68
38.10	36.69	39.24	7.92	7.92	19.05	17.31
38.10	36.69	39.24	7.19	7.19	19.05	14.49
31.75	30.80	32.70	9.19	9.19	15.88	26.20
31.75	30.80	32.70	7.92	7.92	15.88	20.08
31.75	30.80	32.70	7.19	7.19	15.88	16.85
28.58	27.72	29.43	7.92	7.92	14.29	21.83
28.58	27.72	29.43	7.19	7.19	14.29	18.35
25.40	24.64	26.16	7.92	7.92	12.70	23.91
25.40	24.64	26.16	7.19	7.19	12.70	20.14
19.05	18.48	19.62	5.72	5.72	9.53	16.78
15.88	15.40	16.35	4.50	4.50	7.94	12.62
11.00	10.67	11.33	4.00	4.00	5.50	13.55
10.00	9.70	10.03	4.00	4.00	5.00	14.51
8.00	7.76	8.24	4.00	4.00	4.00	16.93
6.35	6.16	6.54	2.67	2.67	3.18	10.04
6.30	6.11	6.49	2.50	2.50	3.15	9.93
4.00	3.88	4.12	2.00	2.00	2.00	9.31
3.00	2.91	3.09	2.00	2.00	2.00	11.17
2.00	1.94	2.06	1.50	1.50	1.50	8.99

---
