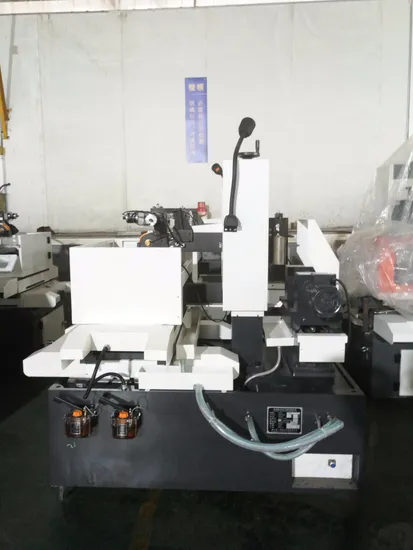

Customized Service High Speed Wire Cutting EDM

Product Description

Zhenyue Custom Manufactured Edm Maching
Main Feature :
-It supports the machining of alloy steel, nonferrous metal, the materials of the poor conductivity.
-It cuts vertical prupose v-shaped diamond wire retaining device. It does not need hole-punching in wire feeding and traveling. Cutting taper or progressive die uses hole-punching type wire retaining device.
-Large guide-wheel electric supply machanism: It integrate electric supply module. The guide-whee hase long service life, and be propitious to reduce disturbing wire tension.
-Guide-wheels with water-filter type keep the machine clean.
-Molybdenum wire broken wire automatic protection devices, both forced tight wire reminder.
-Using a two-way tensioning nut ball screw, which reduces the reverse drive space Effectively ensure accuracy.

HND320J/SH	PARANETER	Unit
	Electrical Specification
	Input Voltage	V	380
	Max.input Power	KW	<1.5
	Max.output Current	A	5.5
	Max.material Removal Rate	mm³/min	150
	Best Surface Finishing	um	Ra≤2.5
	Machinery Specification
	Work Table Size	mm	650*400
	Work Table Stroke	mm	400*320
	Max.machining Thickness	mm	400
	Max.workpiece Weight	kg	350
	Max.cutting Width	mm	±3°/150
	Wire Electrode Diameter	mm	0.12-0.2
	Wire Traveling Speed	m/s	0.8-11
	Machining Accuracy	mm	≤0.012
	Machine Weight	kg	1285
	Machine Size(w*d*h)	mm	1400*1600*1545
	Operating Liquid Water-tank	L	30

Zhenyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhenyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
