Product Description
Product Description

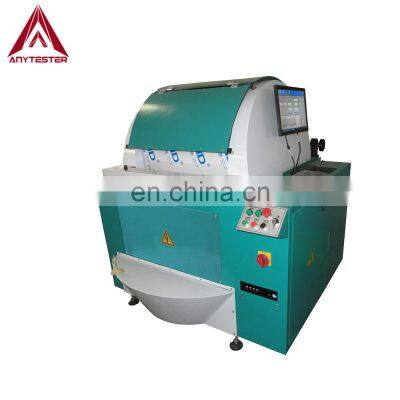

ApplicationSmall Sample Warping MachineAT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.Details and Features★ PC control and software for arranging the laying of yarn;★ Special design for sample weaving in lab or research and development institute;★ Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;★ Yarn breaking detector;★ Foot pedal for unwinding;★ With inching button and emergency stop for the safety of operator.Technical specificationModelAT241BWarping width0~500mmWarping speed0~500m/minWarping length2.4m or 3mApplicable yarn density5~500texNumber of bobbins1pcs (manually changeable)Yarn arrangementServo motor control with accuracy of 0.01mm reachableApplicable warp beam diameter¢60mmApplicable warp beam length300~500mmAir pressure required0.4~0.8MpaAir consumptionMax. 200L/hPower supplyAC380V 50Hz, three-phaseDimensions1700×1000×1300mm(L×W×H)WeightApprox.600kgOur CompanyPacking & DeliveryPakegingPakeging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.Contacting Us
>>
