3gallon 4gallon 5gallon Pet PE Barrel Mineral Pure Water Plastic Bottle Blowing Washing Filling Packaging Bottle Equipment

Product Description

3gallon 4gallon 5gallon Pet PE Barrel Mineral Pure Water Plastic Bottle Blowing Washing Filling Packaging Bottle Equipment Product Description

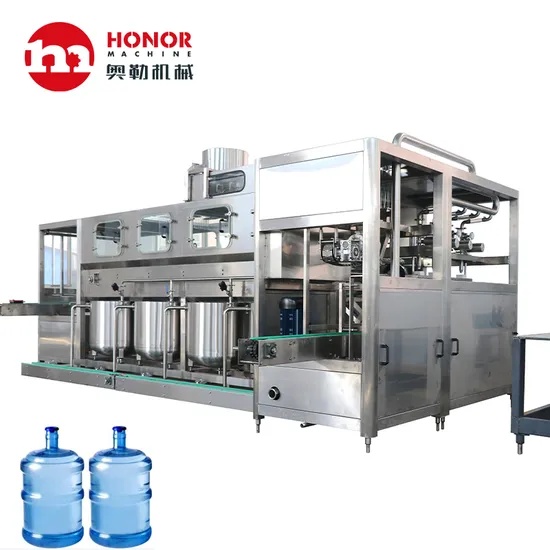

The production line is mainly used for 3-5 gallon barrel drinking water. It consists of three parts: washing(heating
water---sterilized water---pure water), filling and sealing.
This production line can be automatically washed, disinfected, filled, capped, counted and output, with complete
functions, novel design, high degree of automation, it is a set of machinery, electricity, gas in one of the drinking
water barrel equipment.
The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The
main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with
brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment
from American Sprayer Company. The machine works reliably and efficiently based on the compact structure and
high automatic technology. It is the fully automatic barreled water producing equipment combined with machine,
electronic and pneumatic components.
Main technical parameter: 1)Filling Volume: 5 Gallon 2)Size of Barrel: ф276×490m 3)Capacity: 60-900 barrels per hour(depends on customer's inquiry) 4)Power supply: depends on buyer request. 5)Max power consumption 4 kw+ heating 9 kw the Power consumption is only 3.5kw while the machine works as
each electrical part starts intermittently 6)Volume of using water: Filling 9T/H; Purified water washing 2.25T/H 7)Structure type: gear wheel and rack transmission intermittently; Two filling valves 8)There are 10 steps during the washing procedure: (1)Pre-washing,
(2)Dripping,
(3&4)Washing by the recycled water
(5)Dripping,
(6&7)Disinfection liquid,
(8&9)Finished water,
(10)Dripping
Disposal explanation 1)The whole set of equipment is imported abroad. The shower nozzle for washing is the technology products of
American sprayer company 2)Intellectual management, controlled by MITSUBISHI micro-computer. 3)Siemens electrical element 4)AIRTAC pneumatic element 5)The whole set of equipment is made of stainless steel especially for food 6)Including system for automatic cap settling and cap transportation
Main parts list:

No	Product Name	Brand	Made-place
1	Automatic Switch	meilarila	France
2	AC contactor	Customized	France
3	PLC	MITSUBISHI	Japan
4	Electric switch		China
5	pump	BestBrand in China	China
6	Cylinder of principal axis	Airtac	Taiwan
7	Cylinder of up and down	Airtac	Taiwan
8	Cylinder of cap press	Airtac	Taiwan
9	Cylinder of jar push	Airtac	Taiwan
10	Cylinder of filling valve	Airtac	Taiwan
11	Air pressure processing system	Airtac	Taiwan
12	Air pipe.fittings	Airtac	Taiwan
13	Nozzle	Shanghai waigaoqiao company	Join venture
14	Chain	Z304 Stainless steel	Made byself
15	The valve of water inlet	Z304 Stainless steel	Made byself
16	Filling valve	Z304 Stainless steel	Made byself
17	The thickness of Stainless steel plate	1.5mm	Made byself
18	Capacity	jar/hour	240
19	Total power	kw	1.5
20	Filling heads	pic	2
21	Number of cover pressing	pic	1
22	Pressure of the air source	Mpa	0.5
23	Consumption of air	M3/min	0.6

Capability character
Technical parameter

Model	QGF-120	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	3	4	6	8
Volume(gallon)	3-5	3-5	3-5	3-5	3-5	3-5
Barrel size(mm)	¢270*490	¢270*490	¢270*490	¢270*490	¢270*490	¢270*490
Capacity(b/h)	60-120	120-300	300-450	450-600	600-900	900-1200
Gas pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consumption(m3/min)	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.5	3.8	5.5	7.5	9.75	13.5
Weight(kg)	680	1500	2100	3000	3500	4500

Flow chart for complete line
Customer visit
Packaging & Shipping

---
