Original Dunker Motor Automatic Sliding Door Drive

Product Description

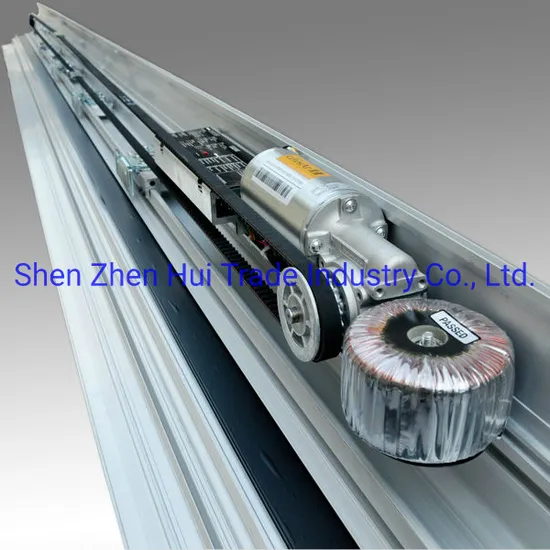

Original Dunker motor Automatic Sliding Door Drive

S20 automatic sliding door drive system : 1. Excellent quality.Use original real Dunker motor
2. Long service life.Tested for more than 5 years.
3. Safety.No any sensitive safety equipment although, When meet a balloon, door panels will reverse softly.
4. Silent.The track rail is coved by a pad which can reduce noise and protect wheels.

6. Meet European safety standard EN16005 and DIN18650.
7. 80-250v power supply.
Standard Configuration
1. Minidrive Unit
2. Transformer
3. Motor
4. Decoder
5. Basic control module
6. Track
7. Carrier
8. Return Pully
9. Service cover holder
10. End stop
11. Door bracket
12. Belt connection
13. Belt tensioning device
Opetional Parts
Motion Sensor
Lock latch
Battery
Beam safety photocell
Additional
Low noise desigh (<40db)
One million times of tests passed
Warranty: 36 months Emergency Functions
Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction
Technical Specification

Model	S20
Door range	Single leaf	Double leaf
Door leaf weight	Max 200kg*1	Max 160kg*2
Door width	800~3000mm	700~1500mm
Opening speed	100~750mm/s(Adjustable)
Closing speed	100~750mm/s(Adjustable)
Opening time	0~9 seconds
Motor	Dunker Motor
Supply voltage	Input AC 110V/220V;50-60Hz
Working temperature	-20~50°C
Working noise	Less than 45 db

Dunker Motor :
Controller:
Carriage wheel :
ES200 Automatic sliding door drive:

CONTACT :
ATTN : Sophie





Factory Address: 1F,Building B,Shengde Industrial Park , Dalang District, Longhua Area , Shenzhen City 518109 , China .

---
