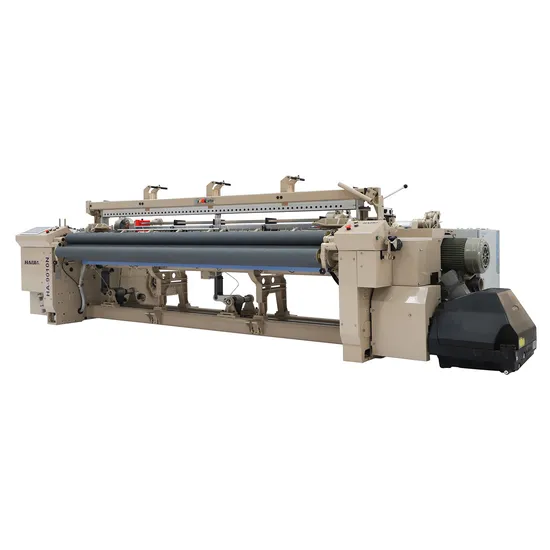

High Speed Electronic Feeder Plain Cam Dobby Weaving Water Jet Loom

Product Description

Configuration List&Specifications

No.	Item	Brand/Original
1	Wall board	Adopt high-density reinforcement and with accurately machining by large CNC
2	Bearing	NSK Japan or FAG Germany
3	Gears	Taiwan
4	Pump spring	Taiwan
5	Plunger	Shutal ceramic
6	Nozzle	MDH Korea
7	One-way valve	AWA Japan or Tae Baek Korea
8	Motor	Red flag or Guofang
9	Let off transmission	SHIMPO Japan
10	Electrical panel	Xinliao,China
11	Painting	Leading electrophoresis process,more stainless
12	Sley	Reinforced SUS304 with polishing treatment
13	Oil seal	CTY Germany
14	Oil spray	Taiwan
15	Pump	Jilong,China
16	Bush	Dupont,USA
17	Temple & copper pieces	Jilong,China
18	Electrical components	Xinliao,China
19	Chain	China
20	Belt	Chunguang,China
21	Shedding type	Plain,cam or dobby shedding(Niupai)
22	Suction motor	Equipped with suction fan(HBO)
23	Suction pipe	∮70mm SUS304,5mm thickness
24	Cross beam	∮102mm surface special treatment
25	Beating-up shaft	∮114*10 reinforced with heating&sandblasting treatment
26	Rotating speed	500-1300rpm
27	Reed space	150,170,190,210,230,260,280,320,340,360,450cm
28	Weft feeder	Depends on customers' demand(Sanhe or Xinliao)
29	Let off & take up	Mechanical or electronic
30	Power supply	415V/3PHASE/50HZ
31	Heald frame	2/4/6/10/12/16 pieces
32	Beam	1.5 piece with 800mm as diameter(heavey & thick)
33	Cloth roller	1.5 piece
34	Heald wire	6000/10000 pieces
35	Steel reed	1 piece

Company Introduction

Qingdao Haijia Machinery Co., Ltd. was established in 1995, since its establishment has been focused on the development of manufacturing water jet loom, is currently set research and development, manufacturing, sales and service as one of professional manufacturer of the largest water jet loom, is the participation of China water jet loom industry standards makers. Water jet loom sales for , the industry's first 13 consecutive years, is China's textile machinery governing unit. good surface quality, wide range of fabrics. Haijia heavy water jet loom has a number of invention patents, utility model patents. Such as reinforcement of beam design, from the high-speed operation of the air jet loom to maintain the stability of the characteristics, which makes the machine more stable, low defective rate and the quality of cloth. For example, weft design optimization, optimization of the beating angle, the beating is stable, smooth cloth. The optimization of the design is also reflected in the fabric of a wider range of adaptability.
1,Our Hornor
2.Spare Parts
3,Workshop Corner 4,Exhibition Show
5.Contact With Us
Jimmy
QINGDAO HAIJIA MACHINERY CO.,LTD
ADD:NO.39 EAST OUTER RING ROAD,WANGTAI TOWN HUANGDAO QINGDAO CITY CHINA

HJ factory main material difference than before.
No.	ITEM	BEFORE	PRICE	NOW	PRICE	PRICE DIFFERENCE(5500¥/set)
1	outside wall board	HT200,made in wangtai	4600¥/Ton	HT250,made in henan province,china largest supplier for cast,same with TSUDOKOMA	6800¥/Ton	(6800¥-4600¥)*394KG/1000=866.8¥/set
2	middle wall board	HT200,made in wangtai	4000¥/Ton	HT250,made in henan province,china largest supplier for cast,same with TSUDOKOMA	5800¥/Ton	(5800¥-4000¥)*160KG/1000=288¥/set
3	other HT material	HT150,made in wangtai	4000¥/Ton	HT200,made in henan province,china largest supplier for cast,same with TSUDOKOMA	4800¥/Ton	(4800¥-4000¥)*514KG/1000=411.2¥/set
4	ductile iron	QT420,made in wangtai	5000¥/Ton	QT450,made in henan province,china largest supplier for cast,same with TSUDOKOMA	5800¥/Ton	(5800¥-5000¥)*542KG/1000=433.6¥/set
5	steel pipe	seam	3100¥/Ton	seamless	5950¥/Ton	(5950¥-3100¥)*(63.38KG+63.38KG)/1000=361.3¥/set
6	bearings out of wall board	made in china	1190¥/set	Japan NSK or NACHI	3080¥/set	560¥/set
7	pickling and phosphate	no	0	have	2200¥/set	2200¥/set
8	zinc rich primer	no	0	have	253.4¥/set	253.4¥/set
9	epoxy primer	have	0	have
10	epoxy paint	have	0	have
11	ss bolts	dahua brand,made in shanghai	/	dongming or jinyi brand,made in taiwan	/	120¥/set
12	ss oiling mouth	ss 201 material	/	ss 304 material	/	/

---
