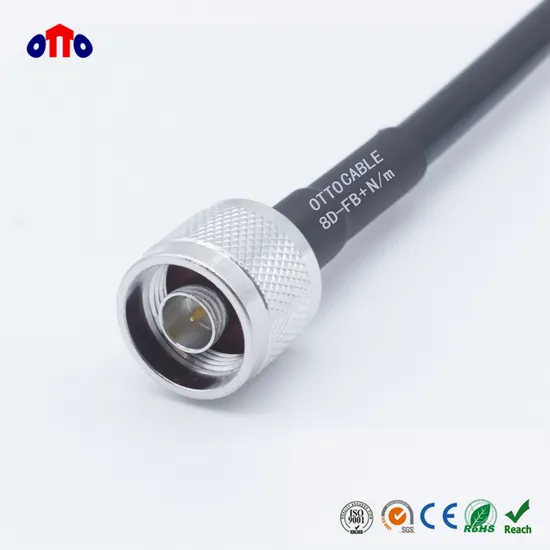

Low Loss 50 Ohm RF Coaxial Cable 8D-FB for Cellphone Signal Repeater/ DAS

US$0.50-1.50 5,000 Meters (MOQ)

Basic Info.

Model NO.

8D-FB

Type

Coaxial

Material Shape

Round Wire

Conductor Type

Solid

Wire Core Material

Bare Copper Wire

Certification

CE, ISO, RoHS

Model

8d-Fb

Brand

Ottocable

8d-Fb RF Coaxial Cable

Inner Conductor

2.80CCA/Bc

Dielectric

7.80 Foam PE

First Shield

8.00 Bonded Aluminum Foil

Second Shield

8.70 Al-Mg Wire Braid/Tc/TCCA

Jacket

10.60 PVC/PE/LSZH

Jacket Color

as Per Request

Impedance

50ohm

Origin of Place

Zhejiang, China

Transport Package

as Per Request

Specification

CE, RoHS

Trademark

OttoCable

Origin

Zhejiang, China

HS Code

8544200000

Production Capacity

150km/Day

Product Description

8D-FB
Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper /CCA Foam PE Bonded Aluminum Foil TC Wire Braid/AL/TCCA PVC/PE/LSZH	2.80 7.80 8.00 8.70 10.60	Per customer's requirements: The second shield could be 128,144 or 168 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

50±3
82±2
82.0
1.6
≤1.3
≥20
≥80
55.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
1200 1500 1800 1900 2000 2200 2500	17.4 19.8 22.1 23.5 25.4 25.9 27.6
