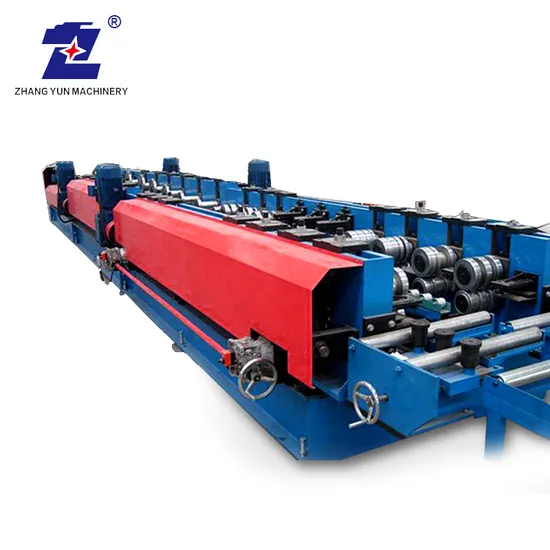

Aluminium Punching Galvanized Profile Steel Full Automatic Cable Tray Roll Forming Machine

US$60,000.00-100,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZY-GY120
Customized
Customized
Condition
New
Control Type
CNC
Automatic Grade
Automatic
Thickness of Strip
Less Than 2.0mm
Forming Speed
4~5m/Min
Pressure
0.6MPa
Voltage
380V/3pH/50Hz
Width of Strio
<=500mm
Transport Package
Shipping, Rain-Proof Package
Trademark
Zhangyun
Origin
Zhangjiagang City
HS Code
8455221000
Production Capacity
15sets/Month

Product Description

Full automatic manufacturer direct selling cable tray roll rolling roller making forming machine
The layout of the cable tray cold roll forming machine:
Uncoiler-Leveling-Forming machine-Cutting off-Feeding frame
Introduction
The production line is highly integrated by uncoiling ,leveling,forming ,cutting off,punching,receiving and related process.The whole production line is controlled by PCL program . Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control ,manual control,separate operation and emergency stop . Technical Specifications
Note
Item
Unit
Parameter
1
Raw material specification
Type

Q235 Steel Plate
Strength
MPa
360
Thickness
mm
3
Internal diameter of the coil stock
mm
508
Weight
T
1
2
Width of the panel
mm

3
Production speed
m/min
10-30
4
Roll material

Cr12
5
Roll drive

Gear Box
7
Main motor
Kw
45kw
8
Electrical control system

PLC Automatic Control System


Advantages
1. Good quality: We have a professional designer and experienced engineer team and the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
