Precision Metal Cutting CNC Lathe with Hydraulic Pressure and Flat Bed Design

Product Description

Product Description
This machine series is a harmonious blend of cutting-edge technology and modern design, featuring a sleek, compact structure with an aesthetically pleasing appearance. A powerful spindle generates significant torque, ensuring exceptional rigidity, stability, and reliability during operations. This machine maintains precision over prolonged use, offering high positional accuracy and efficient chip evacuation. It is perfectly suited for high-speed, high-precision machining tasks, delivering unmatched performance. Capable of automatically processing internal and external cylinder surfaces, conical surfaces, circular arc surfaces, and end faces, it also effortlessly handles single and multiple threads in metric, inch, and various other standards.

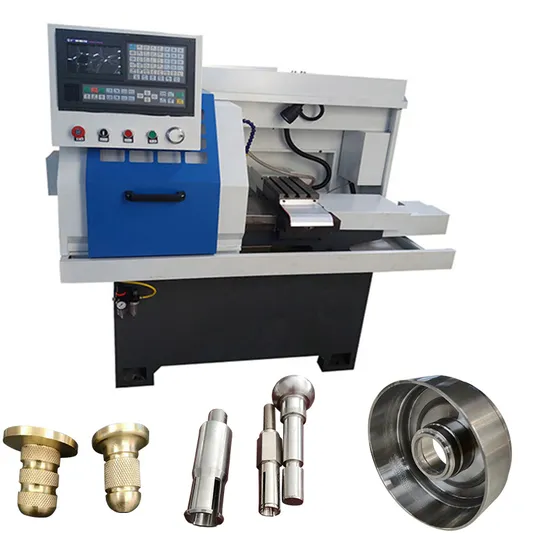

Detailed Photos
Product Parameters

SPECIFICATIONS	UNIT	CK6140
Max swingoverbed	mm	∅400
Max swingover cross slide	mm	∅180
Max processing length	mm	750/1000/1500
X/Zaxi;tra-1	mm	x:240 z:750/1000/1500
Spindle speed	rpm	L:70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	∅52
Spindle taper		MT6
Spindle motor	kw	5.5
Chuck size	mm	∅200
Ball screw dia and pitch		2505/4006
X/Zaxis feed motor torque	N.m	5/7.5
X/Zaxis rapid traverse	m/min	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock sleeve dia	mm	∅65
Quill traverse	mm	140
Quill taper		MT4
System		GSK
Tool postform		Electric six station
Voltage	v	3 PHASE 380V 50HZ
Machine dimension (L*W*H)	mm	2300*1500*1700
Gross weight	kg	1900

Product Description:
1. Aesthetically designed sheet metal construction, ensuring convenient operation
2. Bed frame crafted from premium quality resin sand, featuring aging rail super audio quenching for excellent wear resistance
3. Advanced rail laminating process enhances wear resistance and extends equipment life
4. Precision rolling screw vice transmission with three-point positioning and double support for high accuracy
5. Centralized lubrication unit fully lubricates all moving parts, significantly extending equipment life
6. Multiple clamping options available.
Fit Range
1. Capable of turning cylinders, tapers, arcs, externalities, cut-throughs, bore reams, and creating various screw threads
2. Ideal for automotive and mobile parts, valves, electric tools, hardware meters, etc., providing surfaces with high precision.
Packaging & Shipping
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. Wayne machinery is a manufacture of cnc lathe cutting machine and laser cutting machine ,In fact,we do export for more than 15 years , our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.
Q: How long is your delivery time?
A: Generally it is 15-30 days ,it is according to different machine model and different configuration and order quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Also we would like to do LC at sight.
Q: Where is your factory located ? How can I visit there ?
A: We are located in Liaocheng City. Which is only 1 hours' away from Jinan by train.
Also you can fly to JINAN Airport, it is only 1 hour and we will pick up you.

---
