Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Maximum Lifting Height
>20m
Product Name
Hhbb Electric Chain Hoist
Low Headroom Type
Available
Control Method
Pendent Control or Remote Control
Chain Number
1/2/4 or as Your Order
Standard Lifting Height
3m
Lifting Motor Rotation Speed
1440 R/Min
Hoist Brake Type
Magnetic Brake
Working Class
Light Duty and Heavy Duty
Transport Package
Standard Export Packing
Specification
0.5ton-50ton
Production Capacity
5000sets Per Month
Packaging & Delivery
Package Size
54.00cm * 34.00cm * 41.00cm
Package Gross Weight
44.000kg
Product Description
Product Description

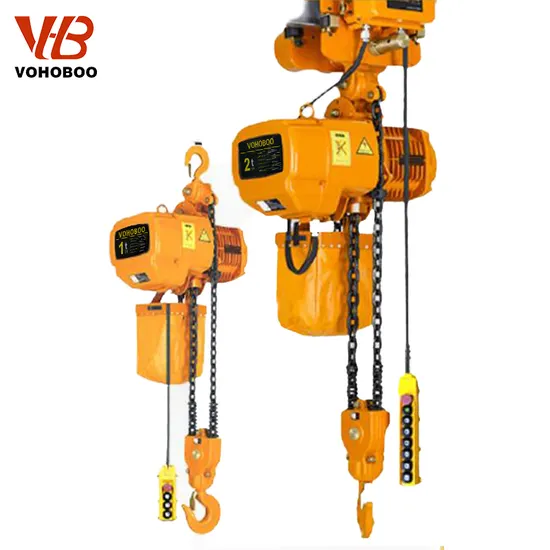

HHBB Electric Chain Hoist Description:
HHBB Electric chain hoist has advanced structure, small size, light weight and convenient operation. It is widely used for lifting goods, loading and unloading work, maintenance equipment. They are often installed on Overhead crane, Gantry crane , Mobile gantry crane, Jib crane , I beams, curved tracks etc.
HHBB Electric chain hoist features:
1. We are a professional supplier for electric chain hoist with rich production experience over 10 years.
2. All the electric chain hoist have CE certification.
3. Capacity is from 500kg to 50T.
4. Light aluminum alloy shell.
5. High strength heat treatment G80 chain.
6. Hook is hot forged with 360 degree rotation.
7. Pure cooper motor, work efficiently and has fast heat dissipation with longer lifespan.
8. It is equipped with Inverse phase sequence protecting device, Side magnetic braking device and limit switch.
9. Both Single speed and Dual speed are convenient.
10. Both Three phase and Single phase power supply are available , from 220v to 600v.
11. Double voltage are available to make, you can change it by manual operation
12. OEM is available
Product Details
Product Advantages
Product Accessories
Product Parameters
Model
| Single or double lifting speed based on client's request
|
0.5-01
| 01-01
| 01-02
| 1.5-01
| 02-01
| 02-02
| 2.5-01
| 03-01
| 03-02
|
Capacity(T)
| 0.5
| 1
| 1
| 1.5
| 2
| 2
| 2.5
| 3
| 3
|
Lifting speed(m/min)
| 7.2/2.4
| 6.9/2.3
| 3.6/1.2
| 8.8/2.9
| 6.6/2.2
| 3.3/1.1
| 5.6/1.8
| 5.6/1.8
| 3.3/1.1
|
Motor power(kw)
| 1.1/0.37
| 1.8/0.6
| 1.1/0.37
| 3.0/1.0
| 3.0/1.0
| 1.8/1.6
| 3.0/1.0
| 3.0/1.0
| 3.0/1.0
|
Rotation speed(r/min)
| 1440
|
Insulation grade
| F
|
travling speed(m/min)
| Fixed hook type or slow 11m/min,fast 21m/min
|
power supply
| 3-phase 380v 50hz/according to client's request
|
control voltage
| 24v 36v 48v
|
No.of load chain
| 1
| 1
| 2
| 1
| 1
| 2
| 1
| 1
| 2
|
Spec.of load chain
| Φ6.3
| Φ7.1
| Φ6.3
| Φ10
| Φ10
| Φ7.1
| Φ11.2
| Φ11.2
| Φ10
|
Net weight(kg)
| 47
| 65
| 53
| 108
| 108
| 73
| 115
| 115
| 131
|
I-beam(mm)
| 75-125
| 75-178
| 75-178
| 82-178
| 82-178
| 82-178
| 100-178
| 100-178
| 100-178
|
