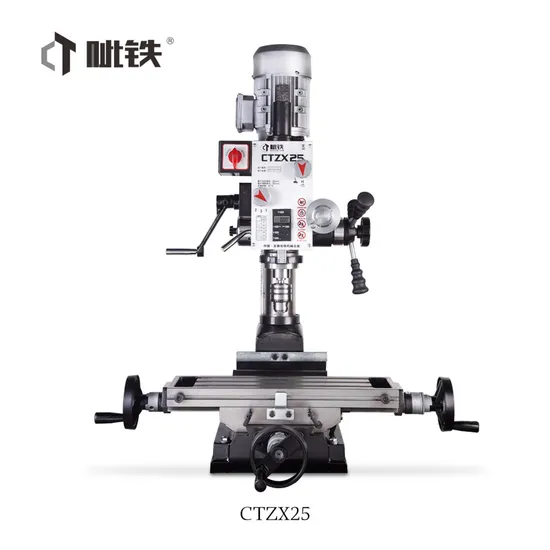

Factory Supply Discount Price Mini Zx25 Drilling Milling Machine

US$2,960.00-3,200.00 1 Set (MOQ)

Basic Info.

Model NO.
Zx25
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
960*580*780mm
Trademark
CTMACH
Origin
China
Production Capacity
1000

Packaging & Delivery

Package Size
96.00cm * 58.00cm * 78.00cm
Package Gross Weight
135.000kg

Product Description

Medium capacity benchtop milling machine
Direct drive (no belts or gears)
Absolutely silent operation
Very good precision and excellent rigidity
Ground table, 3 standard grooves
Spindle speed adjustable by electronic speed control
Digital display of the rotation frequency
Digital depth gauge with reset
Micrometric fine feed or standard drilling function
Possible adjustment of the clearance on the 3 slides by conical slide
Maximum drilling diameter 25mm Spindle taper R8/M12
Maximum face milling capacity 63mm Spindle stroke 70mm
Maximum vertical milling capacity 16mm Distance spindle axis to column guide 160mm
Workbench size 700×180mm Spindle end to table distance 370mm
T-slot size 12mm Headstock swirl angle around ±90°
X-axis travel 485mm Spindle speed/Grade 100-2500rpm/variable
Y-axis travel 140mm Motor 750w
N.W./G.W. 123/135kg Machine size 960×580×780mm
Packing size 730×770×900mm \ \
