DC12V/15V 3LEDs RGB LED Module Pixel Light Outdoor Advertising Display Digital Lamp

Product Details

Product Details

Product Description

Product Description
Description

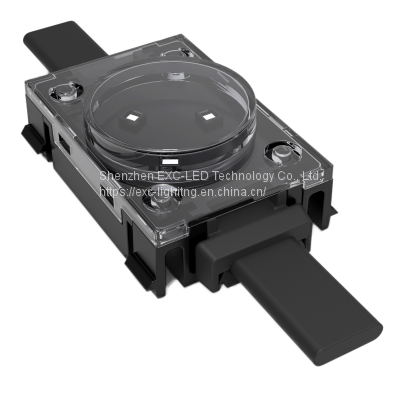

EXC-P35AP5 full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-35AP5 pixel is a separate lighting pixel, and each pixel can realize 8/16bit grades gray scale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.
Features
l The newest generation technology: DMX512 parallel bus design
l Integrated clip-on endless connection
l Fully sealed and waterproof design with high thermal conductive adhesive imported from Germany
l Special outdoor lightning and ESD protection
Basic Specifications
Color
W(2200K-6500K), RGB, RGB+W, etc...
Working Voltage
12V/15V
Max. Power Consumption
0.9W
Light Source
3pcs SMD LEDs
CRI
80
Control
ON/OFF, DMX512
Grey Scale
8bit, 16bit
Source Life
50,000h
RDM
Optional
LED chip Brand
Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Cover
PC(Transparent,Opal)
Housing
PC+ABS
Weight
35g
Dimensions
48mm x 35.5mm x 18mm (L x W x H, exclude Mounting Bracket)
Installation
Installation By Aluminum Profile
Working Temperature
-40°C to 60°C
Storage Temperature
-40°C to 70°C
Protection Rating
IP66
Luminous Flux
25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)
Central Light Intensity
15cd(W)/7.5cd(RGB)/8cd(RGB+W)
Beam Angle
≥105°

Light Intensity Distribution

Light Intensity Chart




Physical Dimension
Unit:mm

Installation By Aluminum Profile

Applicable Scene
Office buildings, residential buildings, hotels, KTV, bars, river banks, museums, Bridges and other building exterior walls...
