Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Product Name
Low Cost CNC Lathe
Tail Stock Sleeve Taper
Mt5
Thru-Hole of Spindle
82mm
Repeatability Error
0.01mm
Max.Work Piece Length
750/1000/1500/2000/3000mm
Tail Stock Center Travel
150mm
Positioning Accuracy
0.005mm
Repeatability (X/Y/Z)
0.003mm
Transport Package
Plywood Wooden Box
Specification
2750*1650*1850mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
275.00cm * 165.00cm * 170.00cm
Package Gross Weight
2500.000kg
Product Description

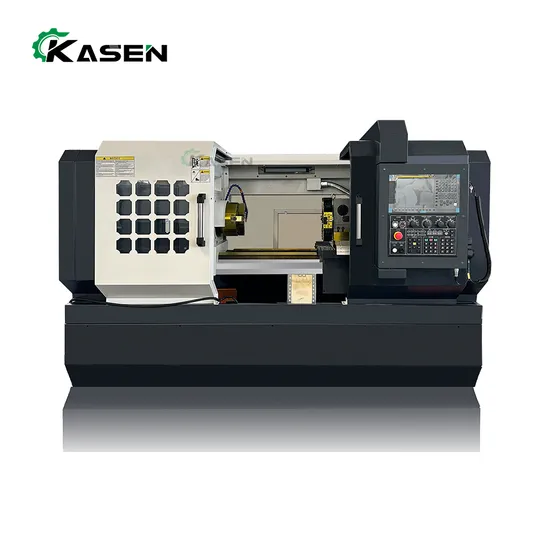

GSK New And Popular Products With High Quality CK6150 CNC Lathe Machine
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:400mm bed width,4 station electric tool postSpindle hole 82mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Spindle hole105mm,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters
PECIFICATIONS
| Units
| CK6136
| CK6140
| CK6150
|
Swing over bed
| mm
| 360
| 400
| 500
|
Swing over cross slide
| mm
| 200
| 220
| 280
|
Distance between centers
| mm
| 750/1000
| 750/1000
| 750/1000/1500/2000
|
Spindle bore
| mm
| 52
| 52(Optional 82)
| 82
|
Spindle bore taper
| -
| MT6
| MT6
| MT6
|
Spindle nose type
| -
| C6
| C6
| C6
|
Spindle speed steps
| -
| Manual 2 steps
| Manual 2 steps
| Manual 2 steps
|
Spindle speed range
| rpm
| L:100-500 H:500-1800 (Optional 90-1800 stepless)
|
Turre/tool post
| -
| Electric 4 position
| Electric 4 position
| Electric 4 position
|
Tool size
| mm
| 25 x 25
| 25 x 25
| 25 x 25
|
X axis travel
| mm
| 200
| 230
| 280
|
Z axis travel
| mm
| 750/1000
| 750/1000
| 750/1000/1500/2000
|
X axis rapid traverse
| mm/min
| 6000
| 6000
| 6000
|
Z axis rapid traverse
| mm/min
| 10000
| 10000
| 10000
|
Tailstock quill diameter
| mm
| 75
| 75
| 75
|
Tailstock quill taper
| -
| MT5
| MT5
| MT5
|
Tailstock quill travel
| mm
| 140
| 140
| 140
|
Main spindle motor
| kw
| 4
| 5.5
| 5.5
|
Coolant pump motor
| kw
| 0.9
| 0.9
| 0.9
|
Weight for 750
| kg
| 1600
| 1700
| 1800
|
Weight for 1000
| kg
| 1700
| 1800
| 1900
|
Weight for 1500
| kg
| 1800
| 1900
| 2000
|
Weight for 2000
| kg
| 1900
| 2000
| 2100
|
Dimension for 750
| mm
| 2200x1600x1650
| 2200x1650x1700
| 2200x1700x1750
|
Dimension for 1000
| mm
| 2500x1600x1650
| 2500x1650x1700
| 2500x1700x1750
|
Dimension for 1500
| mm
| 3000x1600x1650
| 3000x1650x1700
| 3000x1700x1750
|
Dimension for 2000
| mm
| 3500x1600x1650
| 3500x1650x1700
| 3500x1700x1750
|
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
>>
