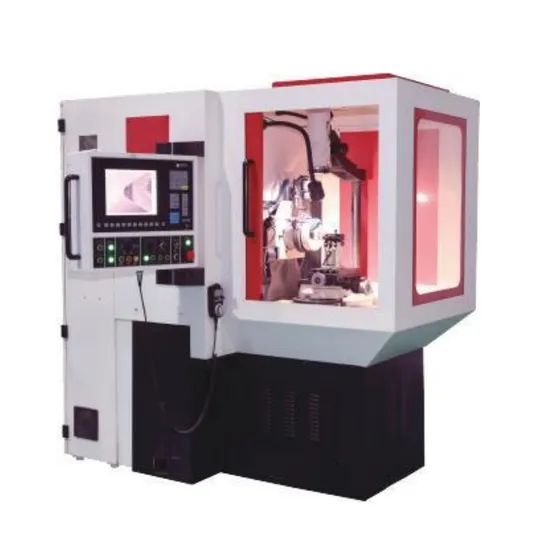

Bt-150dz 5-Axis Precision CNC Tool Grinder

Product Description

Product Description
The machine tool is equipped with on-line derssing wheel measuring probe and dz-in Bt-150 automatic grinding machine. Various types of grinding programs can be stored, and the envelope grinding method can be realized. It is suitable for the manufacture of V-cut tool, grooving cutter and other cutters.
Detailed Photos
Product Parameters
1 Diameter of Grinding wheel 150mm
2 Grinding wheel center hole 40mm
3 Power of grinding spindle 5KW
4 Adjustable range of grinding speed(RPM) 5000 ~ 8000RPM
5 Servo motor swing frequency 0~50times/min
6 Grinding wheel movement range(X ) 350mm
7 Changeable Clearance Angle -5°~25°
8 Table movement range in feed direction 130mm
9 Work-piece rotation range in axial direction 360°
10 Linear scale resolution 0.001mm
11 encoder resolution 1'
12 Max Magnification of Optical Microscope 0.7~4 times
13 Magnification of CCD Measuring System 80 times
14 Coolant Tank with Filter Paper About 70 L
15 Overall Dimensions L*W*H 1890* 1650* 1980mm
16 Weight With Coolant Tank 2400KG
17 Electrical Supply 12Kw
18 Voltage Requested 380V/Three phase /50Hz
Company Profile
Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs.According to the different technical requirements of our customers, our BT-150 series PCD tool grinding machine have three types: manual action, manual and automatic integration, and CNC operation. Among them, the CNC tool grinder with specially developed software is in a leading position in the industry in China. In addition to providing high-quality products, we also provide customers with comprehensive and high-quality after-sales technical support.

---
