Column Boom Manipulator for Seam Welding of Wind Tower

Product Description

Product Features
Here are some features of Welding Manipulator: The welding manipulator can be 3 in 1 controlled together with welding power, welding rotator or positioner according to clients' requests.
The column and boom adopt welding parts which adopt tempering post welding, then carry out fine machining which can ensure higher precision requirement.
Boom adopts square rail, horizontal stretch and retract adopts gear and rack transmission with high precision and stability.
Safety falling protective device is set for boom elevating.
There's cross slider for the welding torch equipped in front of the boom to realize welding torch cross adjust for going up, down, left, right.
There's ladder on the column, which is convenient for maintenance. It is equipped with the platform convenient for Welders to stay.
It can be equipped with a wireless remote control box according to clients' requests for convenience.
This welding centre include welding manipulator and welding positioner. It applies widely in automatically welding of pressure vessel, boiler, petroleum, chemical industry and machinery. It is of high quality, advanced capability and can be easily operated.
Optional
1.Seam tracker system 2. Flux recovery system
3.Manual XY slide 4. Seam monitoring system
5.Motorised XY slide 6 . Welding machine

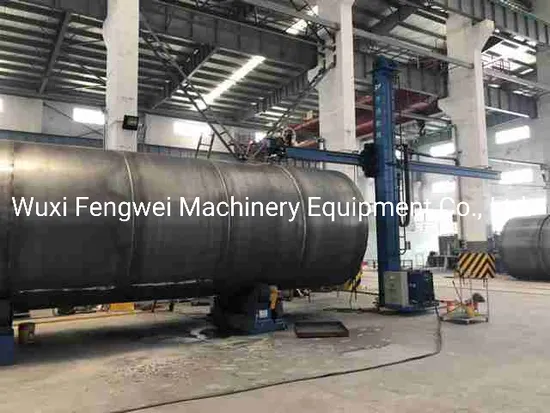

Layout Column and Boom Machine is widely equipped with pipe turning rolls and welding turntable shown below:
Technical Parameter

---
