Hot Sale 30 Ton Amphibious Excavator for River Dredging and Swamp Construction

Product Description

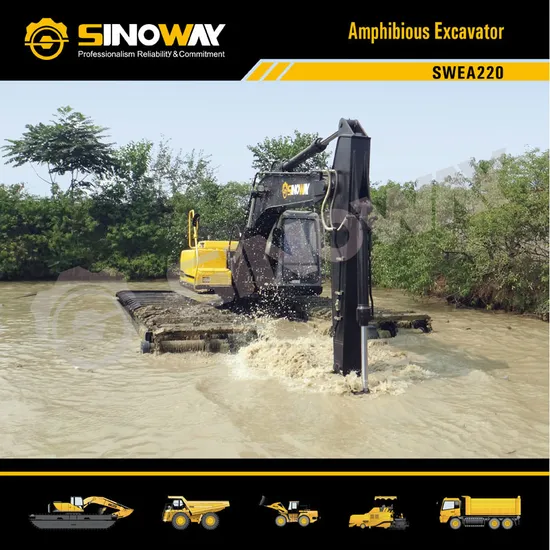

An amphibious excavator, also known as a marsh buggy, is an excavator specifically designed to manoeuvre in marshes, swampy areas and soft terrain, as well as to float on water.
All Sinoway product development is achieved by advanced designing software. Designs are simulated through a state-of-the-art FEA program, ensuring design integrity and increased field reliability. Each pontoon of Sinoway has 2 bulk heads with 3 water tight compartments which are hermetically sealed. The pontoon is designed with sufficient displacement applying Archimedes' Principle to ensure the entire amphibious excavator is able to float on water as a safety feature. Each pontoon comes with manholes for easy access to its interior for servicing & maintenance.
Supplementary pontoons can be added on each side to boost stability in deeper water operation.
Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.
Sinoway track shoe is supported by 2 or 3 strands of track chain offers the advantage of uniform pulling force and superior weight distribution across each track shoe. The track shoe is reinforced box design, enhancing the floating capability. Each sprocket of Sinoway is bolted onto the axel which can be easily replaced individually.
Modular desige of our swamp excavator can be easily assembly and disassembly in working site.
Sinoway also can make custom amphibious equipment according to your actua requirement and the project request.
Machine Show
Machine Introduction
Specifications

Engine
Model	Doosan/Deutz/Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	115KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	30000Kg
Standard bucket capacity	0.9m3
Slewing speed 11rpm	11rpm
Stick digging force	110KN
Bucket digging force	150KN
Hydraulic System
Main pump	KAWASAKI
Main valve	KAWASAKI
Motor	KAWASAKI
Hydraulic flow rate	2x235L/min
Hydraulic pressure	32MPa
Travelling System
Travelling speed	0~5.4km/h
Grade ability	65%
Ground pressure	0.0135MPa
No. of chains	3
Dimensions
Overall length	12100mm
Overall width	6000mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	10200mm
Width of pontoon	1760mm
Height of pontoon	1700mm
Operating Scope
Stick length	3000mm
A: Max. cutting height	10980mm
B: Max. dumping height	8140mm
C: Max. digging depth	6940mm
D: Max. reach	10290mm
