Basic Info.
Type
Concrete Mixing Plant
Machining Process
Welded Molding Machine
Certification
ISO9001: 2000, CE
Machine Type
Production Line
Control System
Full-Automatic
After-Sales Service Provided
on Site or Online Support
Batching Machine
2-4 Bins(Optional)
Concrete Mixer
Js500-Js2000
Discharging Height
1.3m(for Customers Choice)
Core Components
PLC,Engine,Gearbox,Motor
Video Outgoing-Inspection
Provided
Advantage
Convenient Maintance
After Warranty Service
Spare Parts and Technical Support
Machinery Test Report
Not Available
Production Capacity
500sets/Year
Product Description

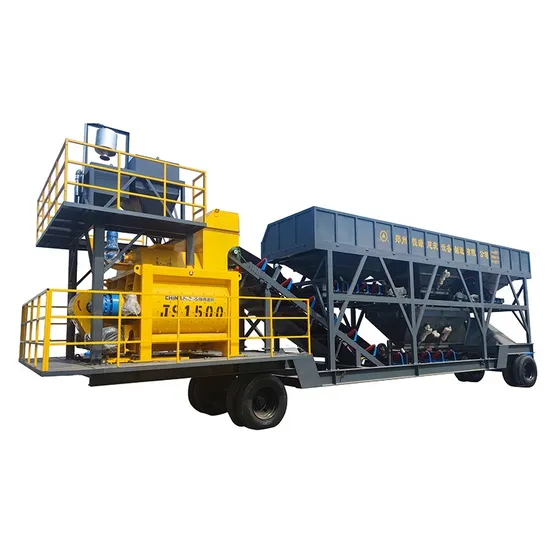

Automatic Twin-shaft Mobile Concrete Batching Plant For Sale
The twin-shaft mobile concrete mixing plant is a concrete production equipment that integrates the material storage,weighing,conveying,mixing, unloading and automatic control systems of the concrete mixing plant into a trailer unit;it is related to the fixed automatic mixing plant. All the action process,operation method,maintenance and repair are almost the same; at the same time,it has the unique characteristics of flexible movement, quick and easy disassembly and assembly,and simple storage management;it is the best choice for mobile construction of highways,bridges,ports, hydropower and other projects model.
1.No concrete foundation required,easy to install and move to everywhere
2.Use twin-shaft concrete mixer/planetary mixer
3.horizontal type cement silo is easy to move
4.the discharging height is 1.3m suitable for working with concrete pumps |
Product Details
| Twin-shaft mixer | Horizontal cement silo |
| Full-automatic control panel | Weighing system |
Product Parameters
Model
|
| YHZS25-2
| YHZS35-3
| YHZS50-3
| YHZS75-3
| YHZS100-4
|
Theory capacity
| m³/h
| 25
| 35
| 50
| 75
| 100
|
Discharging height
| mm
| 1250
|
Total power
| kw
| 51.5
| 65
| 75
| 105
| 121.5
|
Total weight
| T
| 13
| 15
| 16
| 17
| 28
|
Mixing System
| Model of Mixer
|
| JS500
| JS750
| JS1000
| JS1500
| JS2000
|
Mixing motor
| kw
| 18.5KW
| 30KW
| 18.5KW*2
| 30KW*2
| 37KW*2
|
Discharging volume
| L
| 500
| 750
| 1000
| 1500
| 2000
|
Aggregate System
| Model of Batcher
|
| PLD800-2
| PLD1200-3
| PLD1600-3
| PLD2400-3
| PLD3200-4
|
Aggregate Storage
|
| 4m³×2
| 5.5m³×3
| 6m³×3
| 8.5m³×3
| 14m³×4
|
Max. Aggregate Dia
| mm
| 60/80
|
Measurement System
| Cement weighing
| kg
| 500
| 500
| 560
| 900
| 1200
|
Water weighing
| kg
| 220
| 220
| 220
| 330
| 400
|
Additive weighing
| kg
| 30
| 30
| 30
| 40
| 50
|
Trailer Speed
| Km/h
| 40-60
| 40-60
| 40-60
| 40-60
| 40-60
|
Optional cement silo
| T
| 50/100
| 50/100
| 50/100
| 50/100
| 50/100
|
Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
Certifications
Customer Visiting
Packing & Shipping
Successful case
FAQ
Q1:Are you trading company or a source factory? We are factory.We mainly design and manufacture concrete equipment (concrete batching plant, concrete pump) Q2:What are the terms of payment in your formal trade? Normally we can work on T/T term T/T:30%T/T prepayment , 70% paid by T/T before delivery. Q3:What about the delivery time? Usually 15-20 days after receving the deposit. Q4:What's your after-sale service? 18 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well. Q5:What should I do if I experience a problem on our equipment? You could email us the photos to show what happens or call us.Also on-site technician service available as request.
>>
