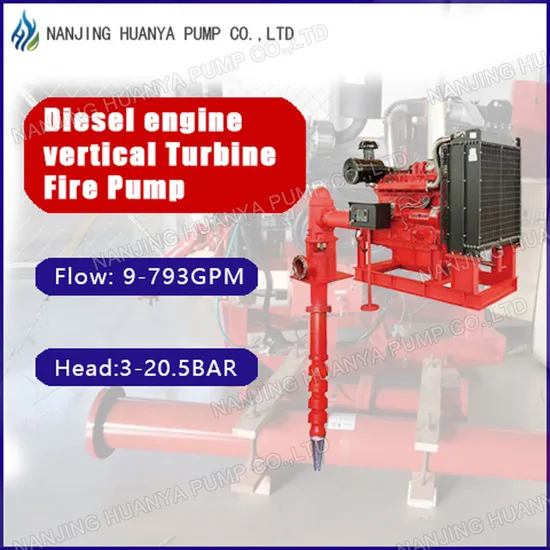

Diesel Engine Vertical Turbine Line-Shaft Fire-Fighting Pump

Product Description

Product Description
XBC seires diesel engine deep well fire-fighting pump, developed by Nanjing Huan Ya Pumps Co., Ltd. It is manufactured in accordance with the latest National Standard GB6245-2006. We also improved the design with the reference of the standard of United States Fire Protection Association. It is mainly used for fire water supply in petrochemical, natural gas, power plant, cotton textile, whaf, aviation, warehousing, high-rising building and other industries. It can also aplly to ship, sea tanl, fire ship and other supply occasions. Product Features1. With the advanced hydraulic design and structure, adopting Ashland process to make impeller blade, adopting epoxy coating process in impeller vane, and reasonable selection of materials, enable the pump have an excellent performance and long life.2. Whirl sand device and maze-like structure make the sand unable to enter the bearings.3. The diesel engines are all dometic or imported high quality products, thet habe the features of good behavior of starting, strong ability for overload, tight structure, convenient for maintenance, simple to use, and highly automated.Performance RangeCapacity: 20-1260m3/hRated pressure: 1.5MpaWhen pumping clean water ot phsical and chemical liquidNeutral water, PH=6.5-8.5, chloride ion conten=400mg/l, medium temperature: 40 degree centigrade MaterialBowl: Cast iron, Stainless steelShaft: Stainless steelImpeller: Cast iron, Bronze or Stainless steelDischarge head: Cast iron or carbon steelApplication

Municipal	Waster Plants	Commercial/Industrial
Golf Courses/Turf Irrigation	Agricultural Irrigation	Dewatering
Mining	Cooling Tower	Water Parks
Snowing	Flood Control	River/Sea Water Circulation
Fire-Fighting	etc

Model

Type	Capacity		Head	Rotating Speed	Motor Power	Dia
	L/S	M³/h	Mpa	r/min	kW	mm
XBC4.4/30GJ-RJC	30	108	0.44	2900	29	190
XBC5.5/30GJ-RJC	30	108	0.55	2900	36	190
XBC6.6/30GJ-RJC	30	108	0.66	2900	43	190
XBC7.7/30GJ-RJC	30	108	0.77	2900	50	190
XBC3.6/35GJ-RJC	35	126	0.36	2900	27	190
XBC5.4/35GJ-RJC	35	126	0.54	2900	40	190
XBC7.2/35GJ-RJC	35	126	0.72	2900	54	190
XBC3.4/40GJ-RJC	40	144	0.34	1450	30	250
XBC5.1/40GJ-RJC	40	144	0.51	1450	45	250
XBC6.8/40GJ-RJC	40	144	0.68	1450	60	250
XBC8.5/40GJ-RJC	40	144	0.85	1450	75	250
XBC3.3/45GJ-RJC	45	162	0.33	1450	31	295
XBC4.4/45GJ-RJC	45	162	0.44	1450	42	295
XBC5.5/45GJ-RJC	45	162	0.55	1450	52	295
XBC6.6/45GJ-RJC	45	162	0.66	1450	62	295
XBC7.7/45GJ-RJC	45	162	0.77	1450	72	295
XBC8.8/45GJ-RJC	45	162	0.88	1450	82	295
XBC9.9/45GJ-RJC	45	162	0.99	1450	92	295
XBC11.0/45GJ-RJC	45	162	1.10	1450	102	295
XBC12.1/45GJ-RJC	45	162	1.21	1450	112	295
XBC13.2/45GJ-RJC	45	162	1.32	1450	122	295
XBC3.6/50GJ-RJC	50	180	0.36	1450	38	295
XBC4.8/50GJ-RJC	50	180	0.48	1450	50	295
XBC6.0/50GJ-RJC	50	180	0.60	1450	63	295
XBC7.2/50GJ-RJC	50	180	0.72	1450	75	295
XBC8.4/50GJ-RJC	50	180	0.84	1450	88	295
XBC9.6/50GJ-RJC	50	180	0.96	1450	100	295
XBC10.8/50GJ-RJC	50	180	1.08	1450	113	295
XBC12.0/50GJ-RJC	50	180	1.20	1450	125	295
XBC2.7/60GJ-RJC	60	216	0.27	1450	34	295
XBC5.4/60GJ-RJC	60	216	0.54	1450	68	295
XBC8.1/60GJ-RJC	60	216	0.81	1450	102	295
XBC10.8/60GJ-RJC	60	216	1.08	1450	136	295
XBC7.4/65GJ-RJC	65	234	0.74	1450	121	295
XBC7.0/75GJ-RJC	75	270	0.70	1450	121	346
XBC3.0/80GJ-RJC	80	288	0.30	1450	50	346
XBC4.5/80GJ-RJC	80	288	0.45	1450	75	346
XBC6.0/80GJ-RJC	80	288	0.60	1450	100	346
XBC7.5/80GJ-RJC	80	288	0.75	1450	125	346
XBC3.2/100GJ-RJC	100	360	0.32	1450	67	346
XBC4.8/100GJ-RJC	100	360	0.48	1450	100	346
XBC6.4/100GJ-RJC	100	360	0.64	1450	134	346
XBC8.0/100GJ-RJC	100	360	0.80	1450	167	346
XBC9.6/100GJ-RJC	100	360	0.96	1450	200	346
XBC2.6/120GJ-RJC	120	432	0.26	1450	65	430
XBC5.2/120GJ-RJC	120	432	0.52	1450	131	430
XBC7.8/120GJ-RJC	120	432	0.78	1450	196	430
XBC10.4/120GJ-RJC	120	432	1.04	1450	261	430
XBC13.0/120GJ-RJC	120	432	1.30	1450	326	430
XBC2.8/140GJ-RJC	140	504	0.28	1450	82	430
XBC5.6/140GJ-RJC	140	504	0.56	1450	164	430
XBC8.4/140GJ-RJC	140	504	0.84	1450	246	430
XBC11.2/140GJ-RJC	140	504	1.12	1450	328	430
XBC14.0/140GJ-RJC	140	504	1.40	1450	410	430
XBC2.6/160GJ-RJC	160	576	0.26	1450	87	430
XBC5.2/160GJ-RJC	160	576	0.52	1450	174	430
XBC7.8/160GJ-RJC	160	576	0.78	1450	261	430
XBC10.4/160GJ-RJC	160	576	1.04	1450	348	430
XBC13.0/160GJ-RJC	160	576	1.30	1450	435	430
XBC3.0/180GJ-RJC	180	648	0.30	1450	113	520
XBC6.0/180GJ-RJC	180	648	0.60	1450	226	520
XBC9.0/180GJ-RJC	180	648	0.90	1450	339	520
XBC12.0/180GJ-RJC	180	648	1.20	1450	452	520
XBC15.0/180GJ-RJC	180	648	1.50	1450	565	520
XBC3.2/200GJ-RJC	200	720	0.32	1450	134	520
XBC6.4/200GJ-RJC	200	720	0.64	1450	268	520
XBC9.6/200GJ-RJC	200	720	0.96	1450	402	520
XBC12.8/200GJ-RJC	200	720	1.28	1450	536	520
XBC16.0/200GJ-RJC	200	720	1.60	1450	670	520
XBC3.0/250GJ-RJC	250	900	0.30	1450	157	520
XBC6.0/250GJ-RJC	250	900	0.60	1450	314	520
XBC9.0/250GJ-RJC	250	900	0.90	1450	471	520
XBC12.0/250GJ-RJC	250	900	1.20	1450	628	520
XBC15.0/250GJ-RJC	250	900	1.50	1450	785	520
XBC2.4/300GJ-RJC	300	1080	0.24	1450	150	600
XBC4.8/300GJ-RJC	300	1080	0.48	1450	300	600
XBC7.2/300GJ-RJC	300	1080	0.72	1450	450	600
XBC9.6/300GJ-RJC	300	1080	0.96	1450	600	600
XBC2.5/350GJ-RJC	350	1260	0.25	1450	182	600
XBC5.0/350GJ-RJC	350	1260	0.50	1450	364	600
XBC7.5/350GJ-RJC	350	1260	0.75	1450	546	600
XBC9.0/350GJ-RJC	350	1260	0.90	1450	728	600
