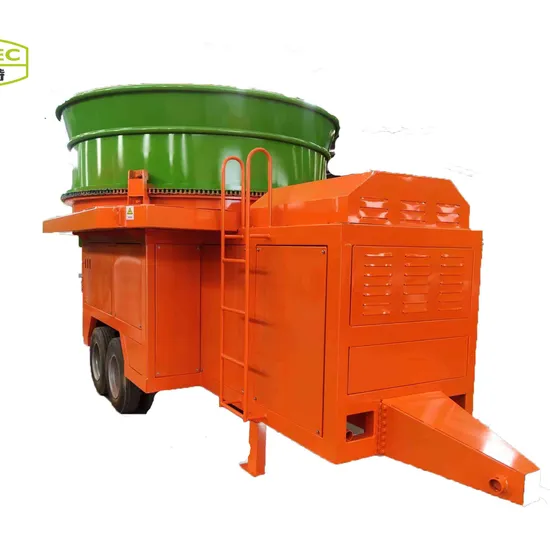

Grass Crusher Hay Corn Straw Shredder Machine Pto Movable Straw Bales Crusher Breaker

Product Description

Grass Crusher Hay Corn Straw Shredder Machine Pto
Movable Straw Bales Crusher Breaker Product Description
This machine is composed of rotary feeding bin, grass cutting and crushing device, frame and so on. The straw device is composed of spindle, rotor, fixed knife, throwing device and so on. Through the high-speed rotation of the rotor, using the hammer blade knife and fixed knife gap material, through the centrifugal force to throw the finished material. The rotating feeding bin is rotating without shaft, relying on idler wheel to support and oriented, in the inner side wall of the rotating feeding bin is equipped with push grass inclined plate, in the bottom plate of the bin is equipped with inclined arc turning grass block, inclined arc turning grass block's upper surface is a slanting structure, the material passes through the side of the turning grass block and the top of the block, so that the crushing device crushes the material, due to the rotating bin continuously the crushing device rotates, and the crushing device carries out continuously the Crushing. This greatly improves the production efficiency.
Performance Characteristics 1,Easy and quick operation, high production efficiency.Automatic feeding, continuous production. Loader feeding, no need for manual labor. Easy to move the equipment.
2,The turntable can store a large amount of material, realize intermittent feeding, loader feeding, no artificial. Convenient and quick operation, high production efficiency.
3,Hammer blade is made of excellent material, the hammer blade is made of manganese steel with tungsten carbide as the edge of the main plate, and the hammer blade can be used continuously for 6 months.
4,Steel structure components, solid and reliable material selection, the use of high-power double-row bearings, long service life. The crushing effect is not the effect of old-fashioned grass cutting, this machine to cut off, cut short, grading broom for the purpose. A machine can be suitable for all straw materials at the same time at the same time for crushing.
5, crushed grass length, according to user requirements, can be adjusted.One machine can be suitable for crushing all straw materials at the same time, with stable performance and long service life.
6,Automatic lubrication, automatic refueling, regular refueling.
ATTENTIONS
This equipment only requires two people to operate, saving you a lot of labor. Trailer mobile crusher, convenient for field production.
Motor and traction dual power can be selected

Model specification	Supporting power	Kneading length	Production efficiency	Rotating motor model	Drum rotating power	Control mode
9FC-60	18KW	3-5cm	2 tons/hour	BM4-630	3 kW	Motorized pushbuttons
9FC-80	18KW	3-5cm	2 tons/hour	BM4-630	3 kW	Motorized pushbuttons
9FC-90	30-37KW	3-5cm	3 tons/hour	BM4-630	/	/
9FC-100	55KW	3-5cm	2~4 tons	BM4-630	5	Motorized pushbuttons
9FC-130	90KM4 class motor	3-5cm	8-10 tons/hour	BM4-630	Hydraulic drive	Manual hydraulic valves

Detailed Photos

Packaging & Shipping

We provide best solution and one-stop shopping service on equipments. We offer wholesaler, distributor, sales agent competitive price to support their local business. We have rich experience in doing Tender Projects from NGO, FAO, UNDP, and Government Procurement. We commit ourselves to providing proper products and full service for every domestic and overseas customer. We investigate the developing countries market in depth and choose the most suitable machines to meet local demand. We will remain our first aspiration to help more people use machines to change their lives We love the world and peace and aim to unit in a concerted efforts with all developing country friends to create beautiful life.
FAQ
Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.

---
