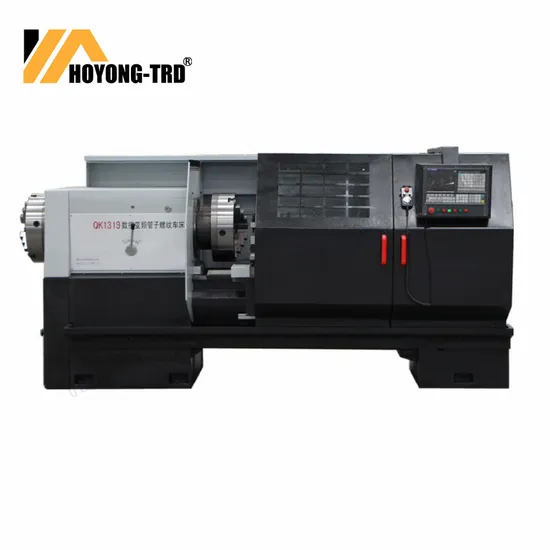

200mm Big Spindle Bore Pipe Threading Flat Bed CNC Lathe Qk1319 Oil Country Heavy Duty CNC Lathe

US$16,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Qk1319
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Bed Width
550mm
Swing Over Bed
630mm
Spindle Bore
200mm
X Axis Travel
520mm
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month

Product Description

CNC PIPE THREADING LATHE FEATURES:
QK13 series of CNC pipe threading lathe is mainly used for processing inner and outer pipe thread, metric thread
and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface,
conical surface and other revolution and end surface as general CNC lathes
SPECIFICATIONS:
SPECIFICATION UNIT QK1319
Nc System Fanuc Oil mate control system
Max dia.swing over bed mm 630
Max dia.swing over cross slide mm 345
Max.length of work-piece mm 1000
Width of bed mm 550
Spindle bore mm 205
Power of spindle motor Kw 11
Mode of spindle speed Two gears
Variable speed change
Range of spindle speed r/min (L):25-120
(H):100-500
Max.traverse of X/Z mm X:350 Z:750
X/Z rapid traverse mm/min 4000

X-axis motor		 Speed r/min 1500
Torgue N.m 10
Power Kw 1.5
Speed r/min 1500
Z-axis motor Torgue N.m 15
Power Kw 2.3

Tailstock quill		 Diameter mm 100
Travel mm 250
Taper Morse NO.5

Electric tool-post		 Model LDB4-6163A
No.of tool stations Vertical four-station
Dimension mm 240×240
Turret indexing time S 2.6
Chuck K11-500 three jaw chuck
Positioning accuracy mm 0.020
Repositioning accuracy mm 0.01
Overall dimensions(L*W*H) mm 3157×1755×1880
Machine weight T 4.2
