3 Axis CNC Machining Center for Aluminium Extruded Profile CNC Drilling and Milling

Product Description

Product Description

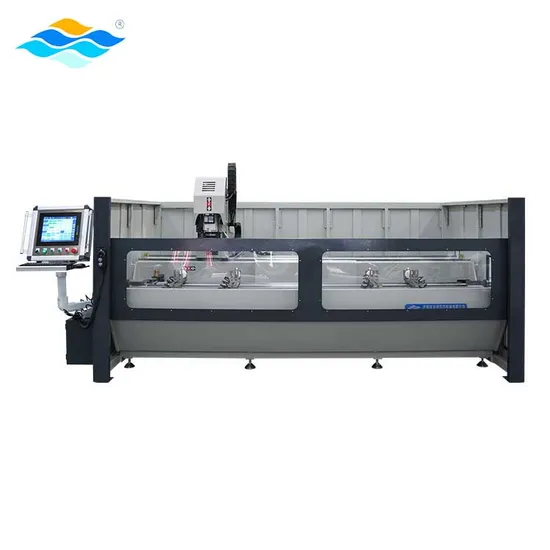

MC3-3000 is a CNC machining center,It has X,Y and Z three CNC controlled axis.Drilling,contour or pocket milling and tapping can be done on this machine. This machine can be used for processing windows,doors,façade and curtain wall.As well as other products made of aluminum tubes. Example,the lock holes and slots,hinge holes,weep slots and assembly holes on aluminum windows and doors.
Standard Features Applicable material:aluminum,pvc and wood,steel tube is optional. Equipped with CNC numerical control system and CAM software which can read the.DXF drawing. Simple programming, the software comes with a graphics library containing a variety of machining hole patterns. Equipped with hand-operated pulse generator. Equipped with tools magazine,automatic tool change. Equipped with automatic tool setting guage. The position of the clamps can be scanned and adjusted automatically without manual intervention The zero-point stop can be automatically turned over which is friendly for the processing at or near the end face. The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing. Automatic coolant spraying. Automatic lubrication. Self-lifting safety guard. Specification

Model	MC3-3000
Power supply	380v/50hz
Electrospindle power	8kw
Rated speed	12000rpm
Max.speed	24000rpm
X-axis stroke	3000mm
Y-axis stroke	320mm
Z-axis stroke	300mm
Air pressure	0.6-0.8Mpa
Air consumption	100L/min
Magazine	6 tools
Tool holder	ISO30
Collet	ER32
Dimension	4200*2000*2350mm
Weight	1800kg

Details Images

Hisena CNC,since 2008
Our Team
Our Customers

FAQ
• Are you factory or trading company?
We are a factory with more than 10 years experience in manufacturing door and window equipmen
• What kind of payment methods do you have?
We support T/T and L/C payment.
• Do you have customized service?
Yes, we can do customized order.
• How about shipping time and method?
The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
• How long is the service life and warranty?
The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
• How to install and use the machine after arrival?
Our equipment has been debugged before leaving factory to meet production standard requirements.
We can provide engineers on-site installation training, remote videophone installation guidance, installationand commissioning videos, user manuals and variety methods.
• How to do the maintenance for machine?
Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.

---
