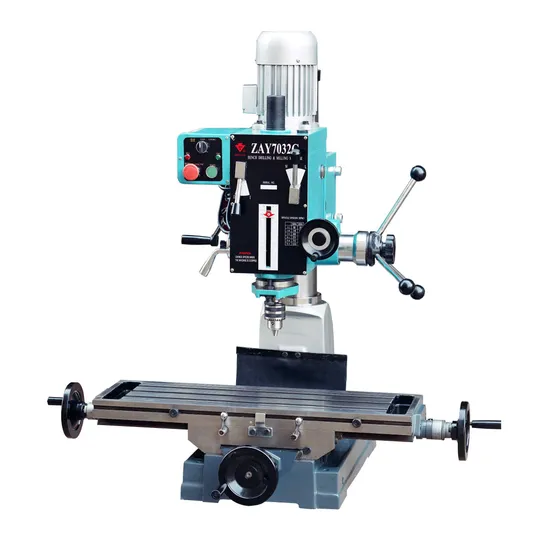

Manual Bench Drilling and Milling Machine for Metal Machining Zay7032g/Zay7040g/Zay7045g

US$930.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

ZAY7032G /ZAY7040G/ZAY7045G

Hole Diameter

<50mm

Automatic Grade

Semiautomatic

Precision

Certification

CE, ISO 9001

Condition

New

Function

Drilling Milling Tapping

Drilling Capacity

20~45mm

Drive Type

Gear Driven

Transport Package

Polywood

Specification

770*880*1160mm

Trademark

WHITE EAGLE OR CUSTOMER LOGO

Origin

China

HS Code

8459290000

Production Capacity

500/Month

Product Description

1.Product Description Features
1)Gear-driven type and round column
2) Milling, drilling, boring, reaming 3) Headstock swivels 360 horizontally
4) Micro feed precision
5) Adjustable gibs on table precision.
6)Strong rigidity, powerful cutting and precisely positioning.
2.Specification

Model	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	32mm	40mm	45mm
Face milling capacity	63mm	80mm	80mm
End milling capacity	20mm	32mm	32mm
Distance from spindle nose to table	440mm	440mm	440mm
Min. distance from spindle axis to column	272.5mm	272.5mm	272.5mm
Spindle travel	130mm	130mm	130mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M. T. 3 or R8	M. T. 4 or R8	M. T. 4 or R8
Spindle taper	M. T. 3 or R8	M. T. 4 or R8	M. T. 4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r. p. m	80-1250 r. p. m	80-1250 r. p. m
60Hz	95-1500 r. p. m	95-1500 r. p. m	95-1500 r. p. m
Swivel angle of headstock(horizontally/perpendicularly)	360° /± 90°	360° /± 90°	360° /± 90°
Table size	800× 240mm	800× 240mm	800× 240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer' s requirement	As customer' s requirement	As customer' s requirement
Net weight/gross weight	315kg/365kg	318kg/368kg	320kg/370kg
Packing size	770× 880× 1160mm	770× 880× 1160mm	770× 880× 1160mm
Loading amount	36pcs/20 ' container	36pcs/20 ' container	36pcs/20 ' container
