Quad Port Industrial Ethernet Network Card for Reliable Connectivity

Product Description

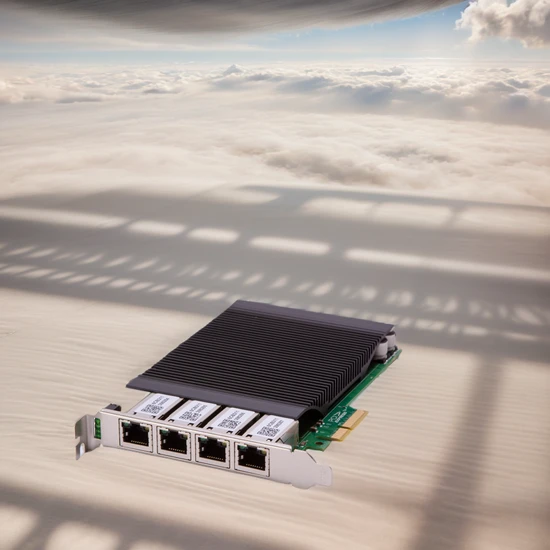

MSS-APOE4 Specifications: Introducing the Quad Port Copper Ethernet Card for Industrial Use by Shanghai Mss International Trade Co., Ltd. This high-performance card provides four ports for reliable and efficient network connectivity. With its gigabit speed and PoE support, it is perfect for industrial applications. Upgrade your network with this versatile and durable Ethernet card.
Product Description Introducing the single-port Power over Ethernet (PoE) adapter card by Shanghai Mss International Trade Co., Ltd. This advanced adapter card offers a range of features designed to meet the needs of English-speaking natives.
1. Single-port PoE output power consumption of up to 30W, with an external large 4Pin power supply replenishment interface.
2. Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3.
3. The adapter card features a wider RJ45 pitch design, ensuring compatibility with various devices.
4. Specially designed interface for industrial cable access, providing a secure and stable connection between the network port and cable in industrial environments.
5. The larger heat sink effectively solves the heat dissipation problem, ensuring the stable operation of the adapter card even in poor heat dissipation environments.
6. Carefully selected thickened gold RJ5 connector ensures a secure and reliable connectivity.
7. The 4 8-pin RJ45 head design saves valuable PCIe slot resources on the motherboard.
Experience the reliability and versatility of our single-port PoE adapter card. Upgrade your network infrastructure with Shanghai Mss International Trade Co., Ltd.'s cutting-edge technology.

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
