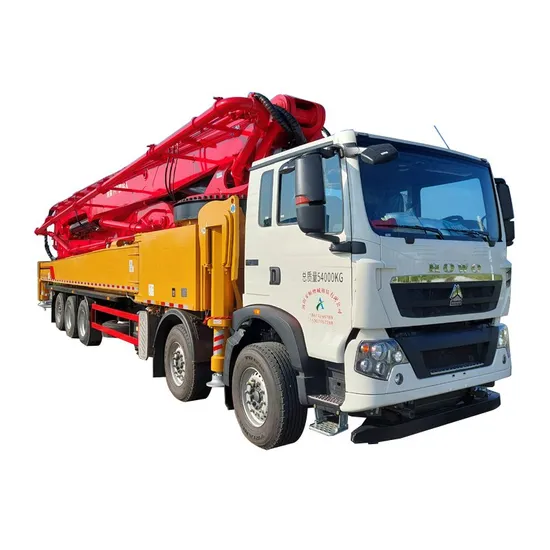

37m Pump Mounted Chassis Mixer Truck Concrete Pump

Product Description

Truck Boom Pump

Professional manufacturer
18 years+ Production & Export Experience

Solid technical foundation and independent innovation to ensure product quality

Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts

MODEL	UNIT	30M	35M	45M	50M
Overall length	mm	9800	11100	12700	12700
Overall width	mm	2300	2500	2550	2550
Overall height	mm	3900	3900	4000	4000
Total weight	kgs	20200	27200	34000	34000
Boom form		5RZ	5RZ	6RZ	6RZ
End hose length	m	3	3	3	3
First arm length/ angle	mm/ o	7550/ 90	8000/ 90	9430/ 90	10065/ 90
Second arm length/ angle	mm/ o	6290/ 180	5995/ 180	7284/ 180	7850/ 180
Third arm length/ angle	mm/ o	6295/ 180	5280/ 180	6900/ 180	7550/ 180
Fourth arm length/ angle	mm/ o	3450/ 180	6000/ 245	8348/ 245	9810/ 245
Fifth arm length/ angle	mm/ o	2856/ 90	5730/ 180	4100/ 225	5570/ 180
Sixth arm length/ angle	mm/ o	/	/	4274/ 90	4335/ 90
Hydraulic system type		Open type system	Open type system	Open type system	Open type system
Distribution valve form		S tube valve	S tube valve	S tube valve	S tube valve
Theory output capacity	m3/h	80	80	100	100
Maximum aggregate size	mm	40	40	40	40
Theory pumping pressure	Mpa	10	10	10	10
Hopper capacity	L	600	600	600	600
Recommended concrete slump	mm	14-23	14-23	14-23	14-23
Hydraulic oil cooling		Air cooling	Air cooling	Air cooling	Air cooling

Truck boom pump in other lengths can also be produced according to your needs. Chassis, equipment, components etc. all can be further negotiated according to your requirements.
Details
Electronic control system
Electronic System is highly automated and reliable. And the major electrical devices are from good reputation The electronic control system is equipped with two kinds of control device: board control device and wireless remote control device, which are with the features of easy operation, user-friendly ergonomics, and nice appearance. There into, the wireless remote control devices are Apollo wireless remote control devices.
The electronic control system is equipped with several warning devices which can ensure high safety during machinery working.
Boom System
Boom system, based on accurate data, is formed by the finite element analysis, dynamic analysis and test.
Boom system is produced with imported high strength low-titanium alloy steel. All material and its welds pass the 100% nondestructive inspection to ensure the safety and reliability of boom.
The control system of boom has pressure compensation and load sensing function. And the R-shaped boom can be adjusted in five grades of speed. So the boom can run in proper speed and can be perfectly operated.
Multi-way valve device
The best loading-sensing multi-way values are used to improve the stability during the boom operating.
Transfer case system
Transfer case is the device which distributes the engine power. It can transfer the power from the engine on chassis so that the power from additional engine can be replaced, and the energy can be saved utilized efficiently.
Hopper
Designed with finite element analysis, the hopper is thick, strong, and good in dimension stability. As a result, the service life of the concrete pump and piston can be prolonged. The arc-shaped design can avoid blind corners. As a result, its performance of the concrete transferring can be improved, and the frequency of concrete blocking-up can
be reduced.
Stirring shaft and S-shaped outlet and small end assembly are double-sealing structured, to prevent the components from corroded and abraded by cement paste.
Packing



Construction case


Our factory
Hunan Tant Heavy Machinery Co., Ltd. is located in the Miluo Feidi Industrial Park, Changsha Economic Development Zone. The company specializes in research, development, production and sales of concrete pumping equipment such as Truck concrete pumps with/without mixer, Trailer pumps with/without mixer, Truck mounted concrete pumps with/without mixer, and Concrete mixing equipment such as Truck mixer, hydraulic concrete placing boom, Truck mounted crane, Construction hoist, Folding tower crane, etc.


Tant Heavy machinery was established in 2003. The leaders of the company has been swayed for nearly two decades. After optimization and reorganization, our company has developed into a large-scale modern enterprise integrating R&D, producing and sales, with annual domestic sales of more than 300 million yuan. The plant covers an area of 60 acres and the workshop covers an area of 21,000 square meters. It has more than 200 employees, including more than 90 research and marketing salesmen. It has 5 branches and 25 offices across the country. The machines have been sold overseas, including Southeast Asia, Africa, South America, CIS and more than 40 countries and regions.
Certifications
Sales and service network
Exhibition






FAQ
1.Q:Are you factory or trading company?
A: We have our own factory in Changsha.
2.Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: There are professional overseas after-sales technicians, and we have local after service team in some areas.

---
