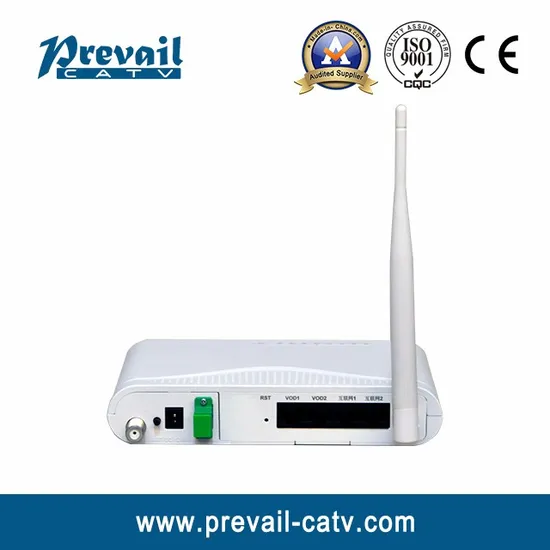

Wgp3200-C-W Gpon ONU (WiFi + CATV RX + ONU) Wgp3200-C-W Series ONU Is a Triple-Play Gpon Terminal Product Designed for FTTH Multi-Service

Product Description

Product Description Product Summary WGP3200-C-W series ONU is a triple-play GPON terminal product designed for FTTH multi-service accessing requirements by telecommunication, broadcasting and TV operators. Based on mature, stable and cost-effective Gigabit GPON technology as well as Gigabit Ethernet switching, HFC and WIFI technology, it is characterized with high bandwidth, high reliability, easy management, favorable QoS guarantee, etc.
GPON technology, based on ITU-T G.984x series standards, is the latest PON accessing method. With high bandwidth, high efficiency, large coverage, and rich user ports, it is ideal for operators to achieve comprehensive transformation.
WGP3200-C-W can use cooperatively with GPON OLT, EMS network management system to provide a complete accessing solution of multiple services like broadband and CATV triple-play service for users based on GPON technology.
Performance Characteristics Pluggable ONU module; dual fiber accessing; provide multiple service like broadband, CATV and WIFI.
Fully compatible with ITU-T G.984 standard; adopt GPON upstream and downstream.
Support four FE auto-adapting Ethernet ports, WIFI and adjustable multicast routing.
Support one HFC optical port.
Support OMCI+TR069 management.
Support Ethernet auto-negotiation and MDI/MDIX auto-detection.
Support loopback detection at user network interface.

Data Service Support Ethernet interface rate, working mode and Pause flow control configuration.
Support packet filtering and anti-illegal message protection, forbidding unknown unicast, broadcast and multicast message.
Support performance statistics of Ethernet lines.
Support 4KVLAN, VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
Support DHCP Option60 reporting the physical location information of the Ethernet interface.
Support PPPoE+ for accurate user identification.
Support multicast/ QoS and IGMP Snooping.
Support AES-128 decryption, key generation and switch.
Support dual management based on DBA and priority to meet the minimum specified bandwidth needs for users.
Technique Parameter (1) CATV Parameters

Item	AGC/-15dbm	AGC/-18dbm
Input Optical Power	-15dBm0dBm	-18dBm0dBm
Optical AGC Control Range	-2~-12dBm
Operating Wavelength	1550 +/- 10nm
Optical Return Loss	>45dB
RF Bandwidth	47MHz~1000MHz
RF Output Level	>=72dBuV (@-12~-2dBm)
C/N	>=51dB (@-1dBm)
C/CTB	>=63dB (@72dBuV)
C/CSO	>=60dB (@72dBuV)
MER(@64QAM)	>=30dB (@-15dBm)
Output Return Loss	>=14dB
Output Impedance	75Ω

(2) ONU Product Specification patr 1

Item	Specification
Interface
PON Interface	1*GPON port compliant with FSAN G.984.2 standard
	Downstream data rate: 2.488Gbps; upstream data rate: 1. 244Gbps
	SC/PC single-mode single fiber
	Support 28dB link (FSAN Class B+) and 30KM distance access with 1:128 splitting
CATV Interface	1*SC/APC optical interface
	1*CATV port, male RF port
Ethernet Interface	4*10/100M auto-negotiation Ethernet ports
	Full/half duplex mode
	RJ45 electrical port, support auto MDI/MDI-X;
	Transmission distance 100m
Power Interface	+12V DC power supply port
Performance Parameter
PON Optical Port Parameter	Wavelength: Tx 1310nm, Rx 1490nm
	Tx optical power: 05dBm
	Rx sensitivity: -28dBm
	Saturation optical power: -3dBm
Data Transmission Parameter	PON throughput: downstream 2.488Gbps; upstream 1.244Gbps
	Ethernet port: 100Mbps
	Packet Loss Ratio: <1*10E-12
	Latency: <1.5ms

(3) ONU ONU Product Specification patr 2

Device Management
Management Mode	Support OMCI protocol based on G.984.4
	Support SNMP and TR069 remote management and remote update
	Support local WEB/CLI management
Function Management	Status monitor, configuration management, alarm management, log management
Physical Feature
Housing	Plastic housing
Power Supply & Power Consumption	External 12VDC/1A power supply adapter
	Power consumption: < 5.3 W
Dimension& Weight	Product dimension: 175mm(L) x130mm(W) x 33mm (H)
	Product weight: 0.31kg.
Environmental Specifications	Operating temperature: 0 to 50 ;
	Storage temperature: -40 to 85
	Operating humidity: 10% to 90% (Non-condensing)
	Storage humidity: 5% to 95% (Non-condensing)

WIFI Specification

Working Mode	Routing and bridge modes, support multi SSID (4 at most)
Physical Rate	IEEE 802.11b: 11Mbps
	IEEE 802.11g: 54 Mbps
	IEEE 802.11n: 150Mbps
Frequency Range	2.412 ~ 2.472 GHz
Channel	13 channels, configurable to the standards of USA, Canada, Europe, Japan, China, etc.
Modulation Method	DSSS , CCK and OFDM
Encoding Scheme	BPSK, QPSK, 16QAM and 64QAM
RF Rx Sensitivity	802.11b:
	-82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
	-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
	802.11g:
	-82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
	-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
	-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
	-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
	802.11b:
	16.5 ±1dBm
	802.11g:
	13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
RF Maximum Output Power	15 ± 1dBm @ 6 ~ 36 Mbps
	802.11n:
	13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
	15 ± 1dBm @ 6 ~ 36 Mbps
Encryption Mode	802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
