Hualong Hlmjx-12c Frankfurt Head Automatic Continuous Marble Polishing Machine

Product Description

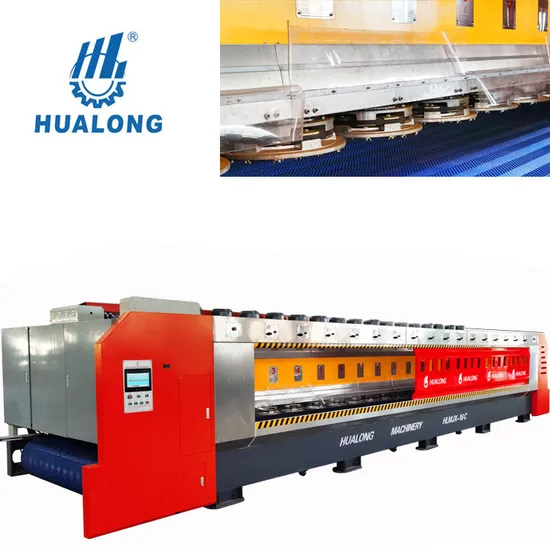

HLMJX-12 Automatic Continuous Resin Grinder
The machine specially fits for grinding and polish the slabs and strips of granite and other natural and engineered stones, moving on a conveyor belt, using a series of grinding heads or resin abrasive disc.
--Perfect surface levelling
--Electric and electronic components in international standards.
--"Fine-honed" surface finish to reduce the number of the following level-ling units,and consequently, the dressing costs.
We can do the machines according to the client's requirements, like the number of heads, processing width and length.
This Model of machine has adopted international advanced technology to be suitable for the automative polishing of marble and granite slabs. It has brand-new design, reasonable structure, stable performance, high efficiency, friendly interface and high degree of intelligence. It is also with merits of small covering space, low consumption rate of polishing material and power, high yield, and etc. This equipment is especially good for the polish of valuable slabs.
Note: This machine has multiple grinding heads which can be selected different number by customer, it can be made 8 heads, 12 heads, 16 heads, 20 heads, and 24 heads according to customer's request.
PLC terminal controlling system adopted and parameters setting through LCD touch screen offer easy operation. Sensor on the machine checks the shape of the slabs automatically and send signal to the PLC to control the movement of the bridge and polishing heads accordingly. Convoying belt and the cross beam adopt frequency conversions for speed adjusting Poly-V belts used for driving polishing spindles which has high strength values and that keep their structural properties against sudden strains Central automatic liquid lubrication system to enhance working smoothness and service life High quality sub and low consumption of polishing abrasives. Conveyor self-cleaning and stone chip removing system.

Technical Parameter

MODEL	HLMJX-8C /12C	HLMJX-16C	HLMJX-20C	HLMJX-24C
Quantity of Heads	8 / 12	16	20.	24
Useful Polishing Width (mm)	300-1250	300-1250	300-1250	300-1250
Processable Thickness (mm))	10-60	10-60	10-60	10-60
Power of main motor (kw)	7.5	7.5	7.5	7.5
Gross Power (kw)	78 / 108	135	168	198
Belt Advancement Speed (m/min)	0-3.8	0-3.8	0-3.8	0-3.8
Water Consumption (m3/h)	17 m3/h	20 m3/h	23 m3/h	25 m3/h
Dimension (LxWxH - cm)	556(676)x230x230	796x230x230	916x230x220	1036x230x230
Gross Weight (kg)	9000 / 12000	15000	18000	21000

Equipment for mining production lines Processing line equipment Main machine parts covered by waterproof shrink film and/or air bubbles. Plywood cartons used for accessories and tools. One set in a 40' container fixed by steel ropes, anti-collision suitable for long distance transportation.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
