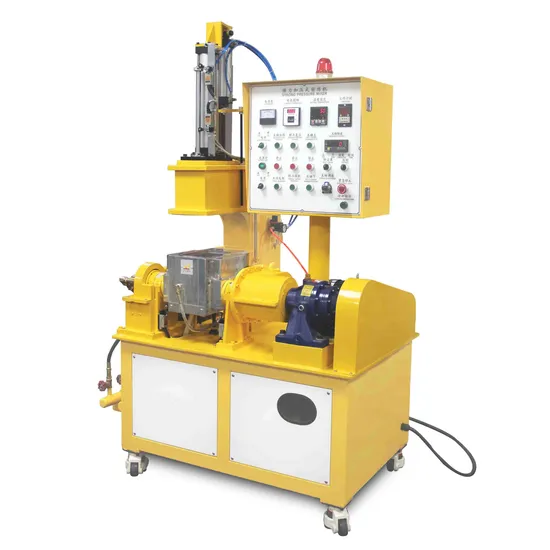

Laboratory Dispersion Kneader Mixer Machine/Lab Internal Mixer

Product Description

Lab Internal Mixer
Product Application
Lab rubber kneader machine is also called the internal mixer,.This machine is suitable for stiring, kneading and dispersion of all kinds of chemical raw materials, such as plastic, rubber, synthetic rubber hot melt adhesive, etc.
It has a pair of rotors with a specific shape that can rotate relative to each other and intermittently masticates and kneads polymer materials in a closed space with adjustable temperature and pressure. The ratios and formulations obtained from the experiments can be used for mass production. It is developed based on the two rolld mill and has become the best mixing machine for laboratory experiments, small batch production, proofing, and school teaching.
Technical Parameters

XH-420 Technical parameter
Mixing Volume	1L, 3L, 5L, 10L,25L
Control Mode	Key control/PLC control (optional)
Flip Motor	0.75kw
Rotor speed (front and rear)	40r/30 min (speed adjustable)
Filp Angle	110ºC
Air pressure	0.3-0.5Mpa
Volume(H*W*D)	1900*1300*1500mm
Weight	1300kgs
Power supply	3∮, AC380V (or customized)

Main Features
1)Compared with the production-type rubber kneading machine, it is small in size, high in precision, and easy tooperate.
2)It has heating and cooling functions to control the temperature of the rotor and the mixing chamber's wall surface.
3)Confiqure a thermocouple temperature-measuring device to measure the temperature change in the mixingchamber.
4)The mixing chamber can be tilted 110 for easy unloading
5)Key control and PLC touchscreen control are optional.
6)No need for manual operation,saving labor.
7)It stirs evenly, with high kneading efficiency.
8)It can overcome the flying dust and reduce the loss of ingredients to improve product quality and the workingenvironment
9)Different capacities can be provided or customized to meet different needs.
Detailed Images
Control panel
It can be configured with a traditional microcomputer key controller.With an automatic temperature and time control system.Various operation instructions are integrated into the operating interface for easy operation.Rotors
The rotors are made of high-carbon steel precision casting, and the surface is plated with hard chromium after quenching and tempering and vacuum 72-hour deep nitriding heat treatment.
The rotor blades adopt a prismatic spiral design to make the material shear and disperse to meet the physical property requirements.
There are spiral ribs on the surface of the rotor, and the number of ribs is twoedged, four-edged, six-edged, etc.
The cross-sectional geometry of the rotor is triangular, cylindrical, or elliptical, and there are two types: tangential and meshing.
The rotor blade is a hollow structure, which can be cooled or heated by water or steam.
Mixing ChamberIn a closed room through a different ratio of the rotos rotating shearing, extrusion, mixing action, plastic (mixed) and then make the material you need.
Other Type of Lab kneader. (PLC control open-close type)
Company Profile
Guangdong Xihua Machinery Co., Ltd. is a research and development, manufacturing, sales, service in one of the laboratory equipment high-tech enterprises. Products are widely used in plastics, rubber, silicone, petrochemical, wire and cable, environmental protection, new energy, medical, automotive and other industries. Has a number of domestic advanced fully automated production equipment, with a trial production testing laboratory in line with national standards, equipped with advanced testing and analysis instruments.
Xihua has been working closely with many top 500 enterprises, well-known domestic enterprises and scientific research institutions for many years, and the international market covers Russia, Germany, Australia, the United States, Canada and Mexico. Brazil, India, Saudi Arabia, Singapore, Malaysia, South Korea, Thailand, Turkey, Philippines, Vietnam, etc.

---
