Fast Speed 120 Pack/Min Mini Wet Wipe Cotton Tissue Folding to Package Machines

Product Description

Product Description

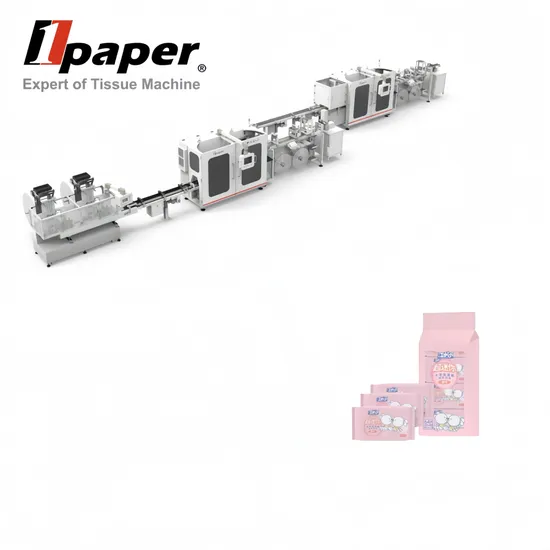

Automatic cotton tissue soft towel tube film packaging machineOPO series
Applicable scenarios: cotton soft towel,wet wipes,etc
max speed: 60 packs/min ( single lane ) and 120packs/min( double lane)
From "liquid filling, foding,small package,bag packaging"automatic completion line
Key performance and structural features:1. Automatically completes folding, adding liquid, stacking, conveying, bottom sealing, batch number printing (optional), bag retrieval/opening, feeding, bagging, end sealing, and output steps. The structure is compact, packaging is aesthetically pleasing, and seals are secure. Press-sealing ensures product squareness.2. Utilizes full servo motors and a 10-inch touch screen with motion control systems for clearer and simpler human-machine interface display. High levels of automation and intelligence result in faster speeds and more efficient, user-friendly operations.3. Employs an automatic material organizing and conveying mechanism, facilitating seamless integration with automated production lines, significantly reducing labor costs.4. Features an optical eye automatic detection and tracking system that skips empty packages, maximizing material savings. Bag loading uses pneumatic inflation, with automatic alignment.5. Batch number, bottom sealing, and bag cutting stations are mounted on rails for easy movement and adjustment while maintaining a constant centerline.6. The entire machine adopts a suspended design, making cleaning, maintenance, and upkeep more convenient.7. Can be connected to middle packaging machines, cartoning lines, and other equipment for end-of-line production.
Product Parameters

Tem/model		OPO 220 Serirs
Packaging form		tube film
Packing material		CPP film,PE film,BOPP film
pack specification	max Length	200mm
	max Width	100mm
	max Height	100mm
Maximum packing dimensions		L200*W100*H100mm ( signle lane) L100*W50*H50mm( double lane)
Packing speed		≤120(bags/minute)
Heating power		7KW
Motor power		16KW
Total power		23KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.7 MPa
Air consumption		200-260L/min
Outline dimensions	Main machine	L6698*W1191*H1858mm
Machine weight		≈3800Kg

Detailed Photos
Printing Samples
Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

---
