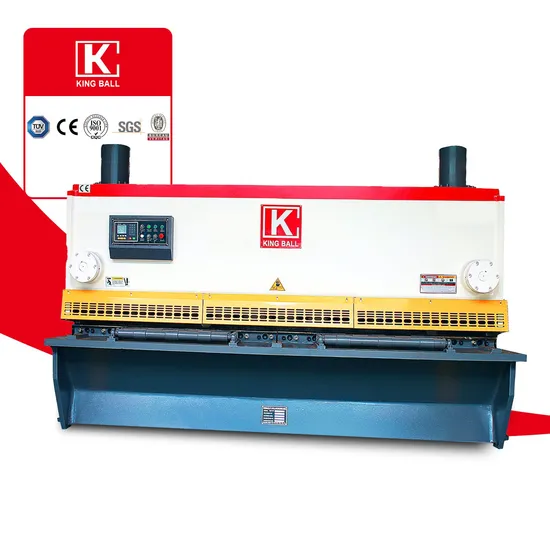

Kingball QC11y-12X3200 Used-Machinery E21s Controller Sheets Metal Swing Beam Shear CNC Laser Cutting Machine Hydraulic Guillotine Shearing Cutting Machine

Product Description

Products Description
Main functions and features 1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2.Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4.The machine uses protection fence for safe operation.
5.Digital display device for size of back gauge and shearing times available.

Hydraulic Swing Beam Shearing Machine	QC12Y-10X2500	QC12Y-10X3200	QC12Y-10X4000	QC12Y-10X6000
Cutting Thickness (mm)	10	10	10	10
Cutting Width (mm)	2500	3200	4000	6000
Throat Depth (mm)	100	100	100	100
Cutting Angle (o)	2	2	2	2
Backgauge Range (mm)	20-600	20-600	20-600	20-800
Stroke Number (times/min)	≥10	≥8	≥8	≥6
Main Motor (kw)	15	15	15	18.5
Weight (kg)	7500	8500	9800	24000
Overall Dimensions (LxWxH in mm)	3180X1800X1700	3880X1830X1800	4850X1850X1900	6500 X2100X2300

Pneumatic Sheet Support System Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Anti-twist System Anti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet. Front Feeding Table Feeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machineryoverseas Contact Ways Ms.Linda Zhang Customer Manager E-mal:linda@jinqiu.cc
FAQ
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.

---
