Electric and Diesel Small Trailer Concrete Pump

Product Description

Electric and Diesel Small Trailer Concrete Pump
Sizes of trailer concrete pump:
Electric motor type, Diesel Engine type
HBTS20 20m3/h, HBTS30 30m3/h, HBTS60 60m3/h, HBTS80 80m3/h,

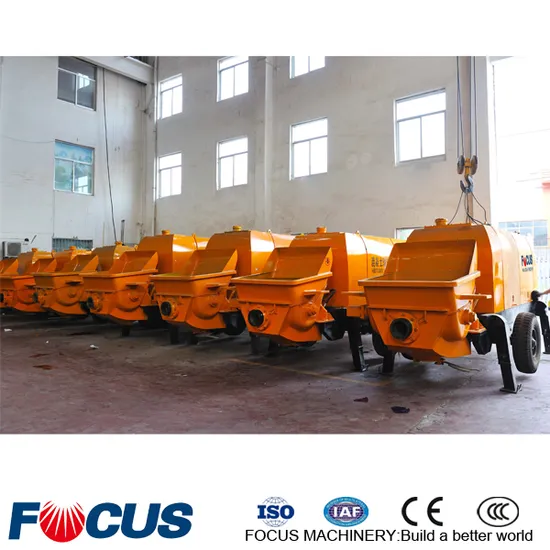

Description of FOCUS small stationary concrete trailer pump
FOCUS small stationary concrete trailer pump is categorized into two types of engine powered: Electric motor and diesel engine, also called trailer concrete pump, trailer pump, mortar pump, trailer mortar pump, diesel pump, diesel concrete pump, diesel mortar pump, electric concrete pump, electric cement pump.
Parameter of Electric trailer concrete pump:

Model Parameter	BS25	BS30	HBTS40-13-45	HBTS60- 13-90E	HBTS80-13 -90E	HBTS80. 16.110E
Max. delivery capacity	25m3/h	20m3/h	30m3/h	60m3/h	80m3/h	80m3/h
Max. diameter(mm)	15mm	15/20mm	20/30mm	30/40mm	30/40mm	30/40mm
Engine power	Electric, 37kw	Electric, 37kw	Electric, 45kw	Electric, 90kw	Electric, 90kw	Electric, 110kw
Pumping Distance (Vertical/Horizontal)	80m/400m	80m/400m	100m/500m	120m/600m	120m/600m	180m/800m

Parameter of Diesel trailer concrete pump:

Model Parameter	BS25-08-56R	BS30-10-56R	HBTS40-10-66R	HBTS40-12-82R	HBTS60-12-82R	HBTS80-13-129R	HBTS80-16-129R
Max. delivery capacity	25m3/h	30m3/h	40m3/h	40m3/h	60m3/h	80m3/h	80m3/h
Max. pumping pressure	8MPa	10MPa	10MPa	12 MPa	12 MPa	13 MPa	16 MPa
Max. diameter(mm)	15mm	15/20mm	20/30mm	30/40mm	30/40mm	40mm	40mm
Engine power	Weifang Diesel engine, 25kw	Weifang Diesel engine, 38kw	Weifang Diesel engine, 66kw	WEICHAI Diesel engine, 82kw	WEICHAI Diesel engine, 82kw	WEICHAI Diesel engine, 129kw	WEICHAI Diesel engine, 129kw
Pumping Distance (Vertical/Horizontal)	100m/500m	100m/500m	120m/600m	150m/900m	150m/900m	150m/900m	180m/1200m

Main features of small trailer concrete pump pump:
1. Open hydraulic system with tri-pump and two circuit is adopted in the trailer concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.
2. High quality hydraulic components and valves use German REXROTH, the valve for switching high pressure to lower pressure is designed to be easily controlled, which can adjust the condition of the electric/diesel trailer pump easily in accordance with the requirement of job site.
3. The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer concrete pump are independent to each other, which makes the working system reliable and the changeover steady.

---
