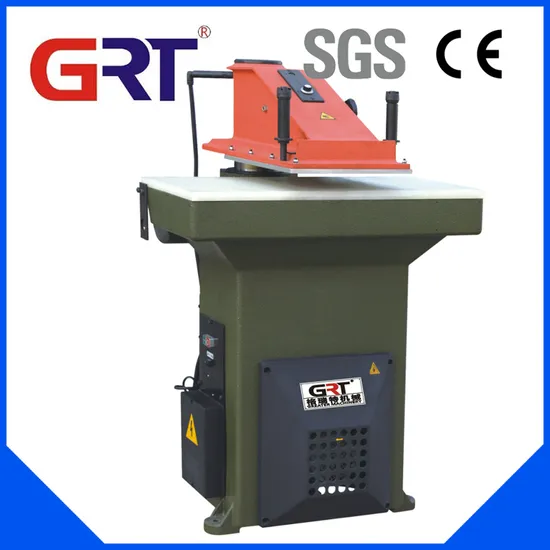

Cutting Press/Clicker Press/Clicking Machine/Atom Cutting Press -Atom Quality

Product Description

Product Description
USE AND CHARACTERISTICS
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption. With only power of 0.75KW, it can output the cutting force of 22T.
4. To meet the need of frequent replacement of cutting die of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Machine configuration:
Pump and Valve: Made in Taiwan
Sealing ring: Made in Italy
Press switch: Made in Italy
Cutting switch: Made in Germany
THE MACHINE INCLUDE PALLET, HYDRULIC OIL, CUTTING BOARD, TOOLS AND SPARE PARTS.
Product Parameters

Model	GRT-S22	GRT-S27	GRT-S27K	GRT-S27L
Maximum cutting force	22T	27T	27T	27T
Table area	900×430mm	1000×500mm	1000×500mm	1000×500mm
Swing arm width	370mm	370mm	500mm	610mm
Cutting stroke	90mm	90mm	90mm	90mm
Motor power	1.1KW	1.5KW	1.5KW	1.5KW
Packing size	1050×1000×1500mm	1100×1100×1600mm	1100×1100×1600mm	1100×1100×1600mm
N.W(with oil)	650kg	930kg	1000kg	1030kg
G.W	740kg	940kg	1030kg	1050kg

Detailed Photos
Certifications
Packaging & Shipping
