Product Details
Product Description
Product Description

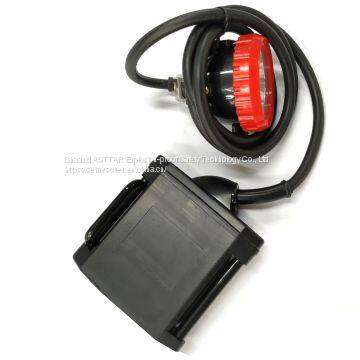

5Ah rechargeable LED cordless miner's cap lamp
Application
• It is specially designed for use in underground mining operations, tunneling etc.
• It adopts power LED as its main and auxiliary light source, LED lifespan more than 30,000 hours.
• The switch on headpiece adopts electronic switch with good sealing and convenient to use.
• There is a microprocessor chip inside miner’s cap lamp which can manage the process of charging and discharging intelligently. With short-circuit protection and over-current protection, lamps can be charged by various charging device.
• Li-ion battery pack is environment-friendly, no memory, and maintenance free and reliable.
• This lamp is intrinsically safety and widely used in the environment where inflammable, explosive or mixed gases exist.
Main specification
Item
| KL4LM(A) -5Ah
|
Battery style
| Li-ion
|
Rated capacity
| 5Ah
|
Rated voltage
| 3.7V
|
Lighting time
| >16h
|
Main
light
source
| Working current
| 0.22A
|
Max luminance
(1m apart from the lamp)
| When lighting begins
| ≥7000lx
|
After lighting for 11h
| ≥6000lx
|
Sub-light source rated power
| 0.2W
|
Charging Voltage
| (5-8)V
|
Charging time
| ≤10h
|
Explosion protection
| Exs I
|
Protection grade
| IP54
|
Dimensions of battery case
| Headpiece: Φ71X75mm
Battery pack: 120X130X105 mm
|
Weight
| 0.6g
|
