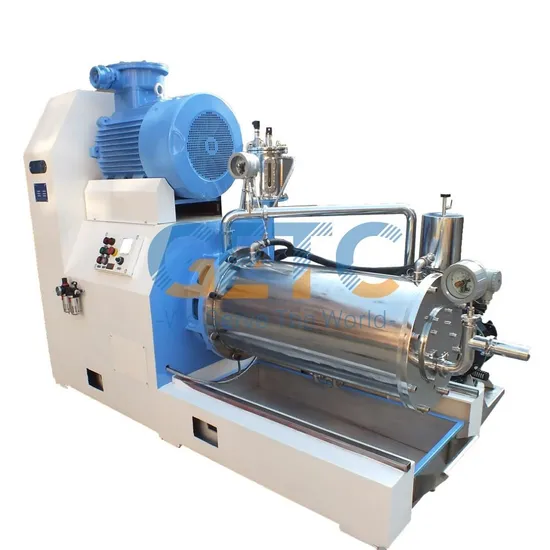

Bead Sand Ball Mill Crusher Grinder Machine for Paint Sc Pesticide

Product Description

Product Description The delivery pump circulates the materials in the tank and the materials in the grinding chamber. The discs drive the grinding medium inside the grinding chamber to do irregular movements in all direction to put the materials under
the. action of constant collision and friction. At same time, the materials are separated from the grinding medium by the sieve and keep circulating from the tank to the grinding chamber to obtain smaller particle size, narrower particle size range.
The machine adopts the dual end surface mechanical sealing with reliability and durability, mated with the Cooling liquid compatible to the ground material in order to reduce the pollution of ground material. It makes the material into aggressiveness and give the strong grind so that the grains reaches the required fineness in short time.The machine is easily operated with reliability and high production efficiency. Depending to different requirements, the different models of machines can satisfy with customers.
The type dispersing disk is functioned by the slot hole and multiplied profiles to produce the strong bump and friction among mediate ball bodies.Therefore, the material can be ground and dispersed in high efficiency.
Features • Low energy consumption ratio, High cost-effective.
• With belts to conveyor driving force from the motor of the main shaft. The grinding discs are specially designed to have higher effiency and lower electric consumption. It is with higher performance-cost ratio among the grinding machines.
• The machine is with integrated on-spot control panel, easy to operate and clean.
• Grinding chamber is with cooling jackets. Input cooling water into the jacket when running to have good cooling result, normally the temperature increase will be within 10ºC.
• The machine is with temperature monitor and control. With settable protection value to ensure the quality of the finished products.
• Full specification, can be customized.
• Specifications ranges from 5L to 100L, which can be customized to be Ex-proof type.
• Grinding chambers made of Polyurethane or Zirconium are in option to ensure its anti-abrasiveness and also to prevent materials from metal pollution.
Applications Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical, etc.
Product Parameters

Model	Volume (L)	Dimension (L×W×H) (mm)	Motor (kw)	Feeding Speed (rpm)	Capacity (kg/h)
WM-30	30	1650×800×1600	22	0-40	50-60
WM-50	50	2100×1050×1700	30	0-40	100-800
WM-60	60	2310×1150×1650	30	0-40	100-1000
WM-90	90	2500×1150×1700	37/45	0-40	120-1200
WM-100	100	2550×1180×1720	45	0-40	150-1350
