DESCRIPTION

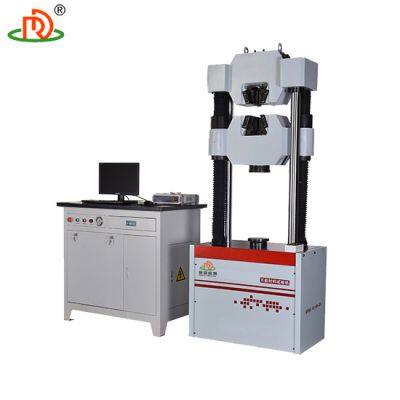

Materials Strength Tester/computer universal test machine have a intelligence computer test system for universal testing.the operator will be get the date from the pc window like curve process, multi-sensor support, image interface, flexible data process and powerful system function.
universal test machine can do tensile test, tear test, peel test, bond test with different clamps for metal,wire,steel,cable,plastic and other kind of materials.
This universal test machine can do different test as per customer requirement such as tensile test,elongation test, peel test, tear test, compression test, bend test with different clamps.
This universal test machine uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
APPLICATIONS
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
This universal test machine can do different test as per customer requirement such as tensile test,peel test, tear test, compression test, bend test with different clamps.
FEATURES
TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
High-tech, low noise
Security protection system
Valid test trip length (modifiable)
SPECIFICATION
Frame capacity
| 30T
|
Measure range
| 2%-100%F.S
|
Load cell brand
| USA Brand Transcell Load Cell for high accuracy
30T (5T, 10T are optional)
|
Load accuracy
| 1% F.S
|
Control system
| PC with windows 7 system
|
Motor
| Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
|
Available tensile stroke
| 600mm
|
Available compression stroke
| 600mm
|
Horizontal test space
| ≤480mm
|
Test speed
| 0.1~200mm/min (adjustable)
|
Round sample diameter
| φ9-φ26mm
|
Flat sample thickness
| 0-14 mm
|
Compression diameter
| φ100mm
|
Clamp control
| Hydraulic
|
Operation control & display
| PC
|
Curves display
| Load- elongation, Elongation-time, Time-elongation, Stress-strain
|
Data display
| Max. force, speed, sample information, strength etc…
|
Safety features
| E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
|
>>
