Basic Info.
Tube Type
Transistor Amplifier
Function
Post Amplifier, Amplifier Combined, Pre-amplifier
Element Number
Push-Pull Amplifier
Transport Package
Dual Durable Carton
Production Capacity
2000 Pieces/Month
Packaging & Delivery
Package Size
56.00cm * 61.00cm * 21.00cm
Package Gross Weight
40.000kg
Product Description

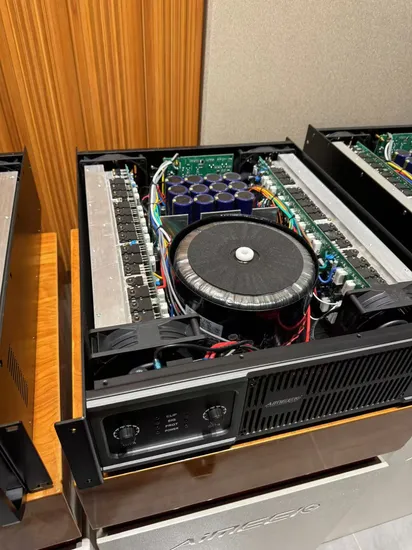

A Series Power Amplifier
Feature:
1. With high Slew Rate, strong ability to restore the details to get more clear and delicate high-frequency performance.
2. With high Damping Factor, strong low-frequency control force to make a strong low-frequency straight extension.
3. The high value of signal to noise ratio, to make sure get a better sound with high fidelity.
4. The new circuit design, adopts the SMT surface mount technology, to improve the consistency and efficiency of the machine.
5. H(Class H) circuit design, advanced power supply technology to reduce the overall power consumption by 40%, reducing the system heating and the weight of the product.
6. Suitable for: KTV, conference room, multi-function hall, bar and theater.
| Model | A-8000 | A-10000 | A-13000 | A-15000 |
| 8Ω Stereo Mode Output | 2x800W | 2X1000W | 2X1300W | 2X1500W |
| 4Ω Stereo Mode Output | 2x1600W | 2X2000W | 2X2600W | 2X3000W |
| 2Ω Stereo Mode Output | 2x3200W | 2X4000W | 2X5200W | 2X6000W |
| 8ΩBridge Mode Output | 3200W | 4000W | 5200W | 6000W |
| 4ΩBridge Mode Output | 6400W | 8000W | 10400W | 12000W |
| Signal/noise | 106dB | 106dB | 108dB | 108dB |
| Slew rate | >60v/us |
| Damping factor | >400 |
| Frequency Response | +/-0.1dB, 20Hz+20KHz |
| THD | ≤0.01%Rated Power@8Ω 1KHZ |
| IMD | ≤0.03%Rated Power@8Ω |
| Input Sensitivity | 0.775V,1.0V,1.5V |
| Input Impedance | 10K/20K |
| Input CMRR | ≤-75dB |
| Crosstalk | ≤-70dB |
| Indicate | Actect , Protect, Signal, Clip |
| power supply | 230V 50/60Hz |
| Weight | 36.5Kg | 39Kg | 40Kg | 42Kg |
| size | 483W X 520D X 133H |
>>
