5 Port Poe Switch 10/100/1000Mbps

Product Description

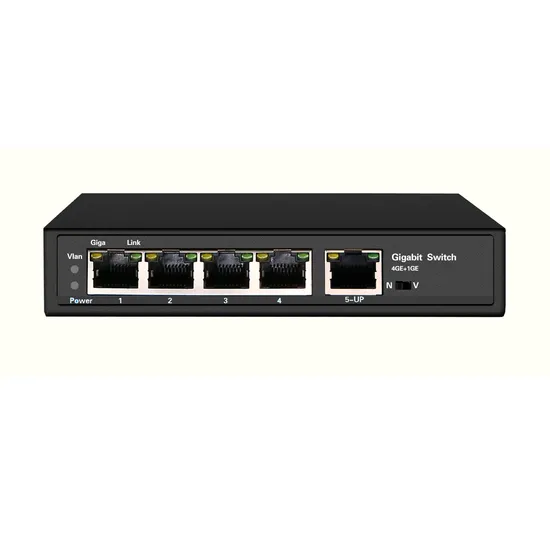

5 Port 10/100/1000Mbps POE Ethernet Switch S600P-4G-1G
Product Description:
The S600P-4G-1G is a full Gigabit unmanaged POE switch, which provides four DATA+POE interfaces and one pure data interface. Among them, port 1-4 follows the 802.3af/at standard and supports maximum power output of 30w. The POE ports of the switch can automatically detect and supply power to the PD devices that complies with the 802.3af/at standard. Otherwise, there is no power supply output. In addition, the switch supports auto-negotiating traffic control functions and is compatible with terminal devices of 10Mbps, 100Mbps and 1000Mbps.
The S600P-4G-1G is usually used to provide power and data transmission for IP cameras, wireless APs, bridges, and IP phones. For terminal devices that do not support POE, the POE splitter can be used to provide power supply and data transmission.
The S600P-4G-1G adopts plug-and-play design, which eliminates the need for software settings, which greatly facilitates the installation and use of digital monitoring and wireless coverage. In particular, the switch provides a set of DIP switches for easy switching between shared or port isolation modes. In the port isolation mode, 1-4 ports cannot communicate with each other, only through port 5 to output data. This mode can effectively suppress the generation of broadcast storms.

Product Features:
Comply with IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.3q, 802.3af/at specifications. 5*10/100/1000Mbps interface, support for auto-negotiation. 4*10/100/1000Mbps POE interface, support 802.3af/at standard, maximum 30w power output. External 60w power adapter. Adopt high-speed Store-and-Forward transmission mode. Support 9k jumbo frames Auto MDI-X function, self-adjusting straight-through line, cross-line connection. 2K Mac address table One DIP switch supports port isolation setting. Port status LEDs Product Specifications:

Model		S600P-4G-1G
Port	1000M POE	4
	1000M Uplink	1
Performance	Store and forward	Support
	Switching Content	10G
	MAC Table Size	2K
Usage environment		Operating Temperature:0ºC~45ºC Storage Temperature:-40ºC~80ºC
		Working humidity:10%~90% RH Non-condensing Storage humidity:5%~90% RH Non-condensing
POE Standard		IEEE802.3af/at per port maximum 30W
Power Input		AC Input 52V 1.25A
Supported Standards and Protocol		IEEE 802.3 Ethernet Media Access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at power supply through Ethernet data line pairs IEEE 802.3x Flow Control IEEE 802.1q VLAN Bridge Operation
Operation Mode		Standard sharing, Port isolation (via DIP switch setting)
Data Transfer Rate		Ethernet 10Mbps half-duplex, 20Mbps full duplex Fast Ethernet 100Mbps half-duplex, 200Mbps full duplex Gigabit Ethernet 2000Mbps full duplex
Network Media		10Base-T:2 pair (Cat3) or above UTP/STP (≤150m) 100Base-TX:2 pair(Cat5)or above UTP/STP(≤150m) 1000Base-T:4 pair Cat5e)or above UTP/STP(≤150m)
Dimension		140*80*28mm
Safety Regulations		FCC,CE,RoHS-Compliant,BSMI

---
