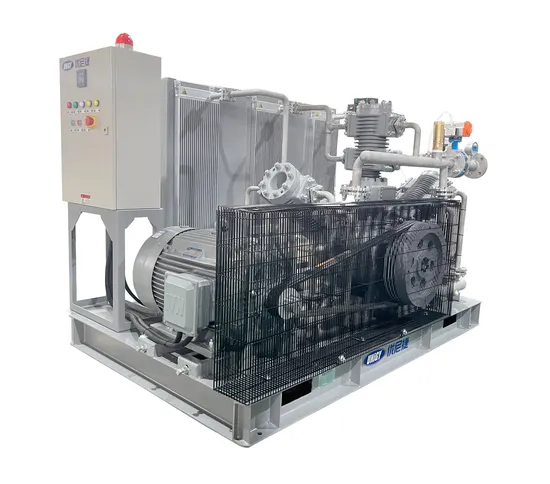

Oil-Free Of15- 50- 2 -Dp Mar4, Tailor-Made, State-of-The-Art Technology, Sustainable, Low Maintenance Cost Helium Compressor

Product Description

Features:
High efficiency air valve
The valve is regarded as the heart of any compressor. Excellent valve design can improve the mechanical efficiency of the compressor. The Unijet compressor valve is specially designed for compressed gas, especially the valve core contact surface and suitable spring tension, so that each piston stroke can compress more gas. Each stage of the valve plate has the characteristics of high strength, smooth and quiet operation, and long service life.
Self-adjustable piston rod seal
Glass fiber polytetrafluoroethylene sealing and automatic adjustment are used for compensation, so that the piston rod can maintain a stable sealing pressure and prevent gas leakage.
Single or double layer sealing
Single and double multiple seals and separate isolation chambers can be selected, which can work even under vacuum conditions. Each separate compartment can be
Independently clean, pressurize or diffuse to isolate toxic or dangerous gases.
Material
The pressure-bearing parts are made of high-quality ductile iron or gray iron materials, which increase the resistance to heat and mechanical impact.
Heavy duty crankshaft
The crankshaft made of ductile iron or forged steel and its integral balance block can make the equipment run smoothly.
Seal
The connecting part is sealed with an O-ring, which ensures reliable sealing under various operating conditions.
Piston
High-strength cast aluminum or adjusted according to actual conditions, light weight and small expansion coefficient, which improves efficiency while extending the
The service life of piston rings.
Self-lubricating piston rings
Thickened self-lubricating PTFE piston rings effectively extend wear life.
Structural form
The main machine adopts single/double-action form, with flexible configuration, suitable for the needs of various occasions, and high efficiency. Product Description

Item	Description	Data
1	Compressed medium	SF 6, N2, O2, H2,He, dry non-explosive gas
2	Max suction pressure	0.4MPa
3	Max discharge pressure	5.0MPa
4	Flow*	8~30Nm3/h
5	Speed	830~1430r/ min
6	Air tightness	0.01mbar L/s
7	Motor power	3~7.5kW
8	Weight	280kg
9	Equipment dimension( Length*Width*Height)	910*600*685mm

---
