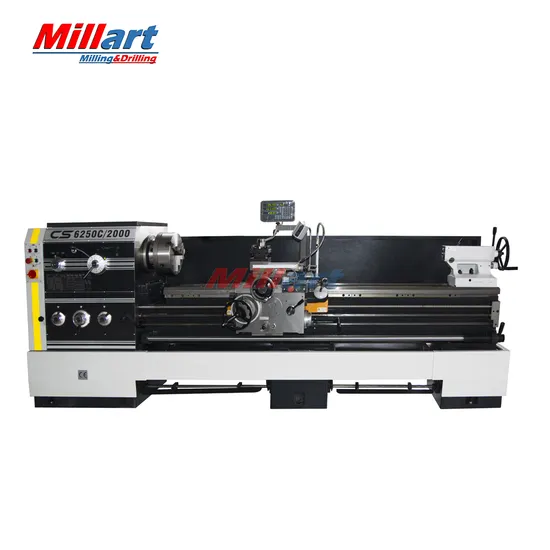

Metal Gap Lathe Machine CS6250c Convention Parallel Turning Machine

Product Description

Metal Gap Lathe Machine CS6250C Convention Parallel Turning Machine
Feature:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technical parameter:

Model		UNIT	CS6250C
Capacity	Max. swing dia. over bed	mm	500
	Max. swing dia.in gap	mm	710
	Max. swing dia. over slides	mm	300
	Max. workpiece length	mm	1000/1500/2000/3000
	Bed width	mm	400
Spindle	Spindle bore diameter	mm	105
	Type of spindle nose	no	ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	12 steps 36-1600
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	65 kinds 0.063-2.52
	Z feed range	mm/r	65 kinds 0.027-1.07
	Metric threads	mm	22 kinds 1-14
	Inch threads	t.p.i	25 kinds 28-2
	Module threads	πmm	18 kinds 0.5-7
	Diametricpitch threads	t.p.i.π	24 kinds 56-4
Others	Length	mm	2632/3132/3632/4632
	Width	mm	975
	Height	mm	1270
	Weight	kg	2100/2300/2500/2900

Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Some tools
Optional accessories:
Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
Chuck guard
Tool post guard
Company information:
FAQ:
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.

---
