PP PE PS Pet Plastic Pelletizer Made in China

Product Description

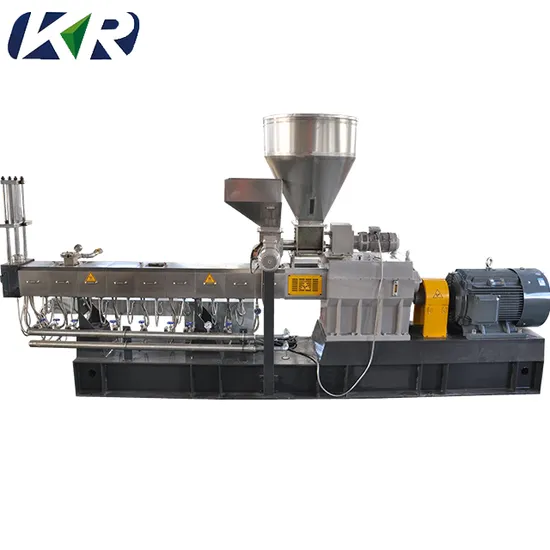

Plastic Pellet Extruder Granulating Machine
Description:
The machines are designed by suing the "toy bricks" principle, the screw configuration, barrel setup,
L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be
optimally adjusted according to different materials properties and requirements in consideration of the
versatility in each general applications

Parameter Table:

Mode	Diameter (mm)	L/D	Speed (r/min)	Power(kw)	Capacity (kg/h)
TSE-40B	41	32-52	600	45-55	100-160
TSE-65B	62.4	32-64	600	90	250-350
TSE-75B	71	32-64	600	132	350-550
TSE-75D	71	32-64	600-800	200-250	600-800
TSE-95B	93	32-64	600	315	800-1200

Typical work:
TSE\TSH co-rotating twin screw extruder is able to process materials as follow:
Filling and modification
General and fibre color masterbatch
Blending modification (rubber & plastic blending, plastic alloy)
Functional masterbatch
Glass fibre or carbon reinforcement
Various cable material
Handling after dewatering
Special material
Powder coating

Charateristics:
1.The gearbox
· New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate
and the torque assignment get together, which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel,
cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high
torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2.The feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding,
liquid-adding system,etc.
3.Screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile
combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding,
pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4.The barrel
· Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature
difference in C areas smaller.
· According to the material and special techinics demands, the material of cylinder can use high quality
nitrided steel, corrosion proof or antifriction with corresponding process.
5.The heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity
of heater.
6.Pelletizing
· Variou modes of pelletizing, such as water-cooling strand, air-cooling, water-ring, under water pelleting, etc.
Company & Service:
FAQ
1. Q:Are you factory or trading company?
A: We are manufacturer.
2. Q: What makes you different from other suppliers?
A: 1) firstly,our factory is very professional in twin screw extruder for many years, and our machine's
quality is best in our field and our price is also competitive from other suppliers.
2) second,our service is very excellent.and our engerneers is avaliable to service the machine overseas
and if you have any questions you can contact us at any time,we will reply you in 24hours.
3. Q:What is the payment?
A: 1) T/T payment; 30% T/T in advance ,balance before shippment. 2) L/C or contact us for other ways.

---
