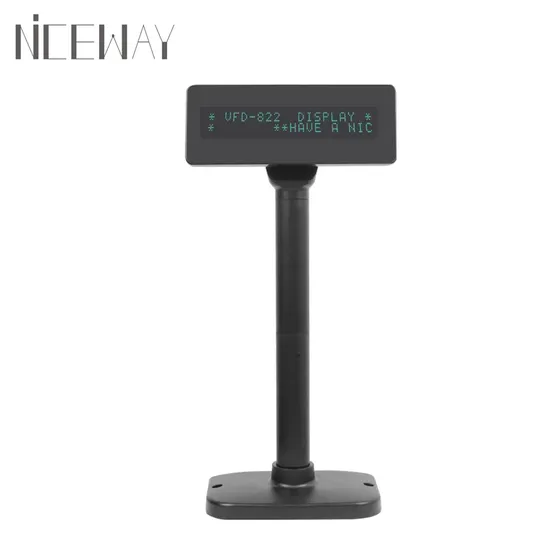

| Model | VFD-220 customer diaplay |
| Interface | Serial RS232 port (USB port optional) |
| Baud Rate | 9600bps |
| Parity | None |
| Data Bit | 8bit |
| Stop Bit | 1bit |
| Electrical | By the power of the host computer DC12 (big 4ps interface) | | | | | | |
| Used in area | POS System, Marketplace, Airdrome, Station, Post, Bank etc. | | | | | | |
| Display Method | |
| Display | VFD Bright blue-green fluorescent display |
| Display Characters | 2 linex20 characters/line, 40 characters, 5x7 Dots |
| Character Size | Height 11mmxWidth 7mm |
| MTBF | 25,000 hours |
| Dimensions | |
| Panel Dimensions | 80(H)x225(W)x37(D)mm |
| Support Dimensions | Base dimensions: 185(L)x95(W)x25(H)mm |
| Pitching Move Angle | 45°, provide comfortable, and adjust the visual Angle | | | | | | |
| Weight | 1.2Kg for 1 customer diaplay |
| Environment | |
| Operating Temp | -20°C~70°C |
| Storage Temp | -40°C~80°C |
| Operating Humidity | 10%~85% |
| Storage Humidity | 10%~90% |
After Sales Service All Products From Our Factory Quarantee 18 Months Warranty.
