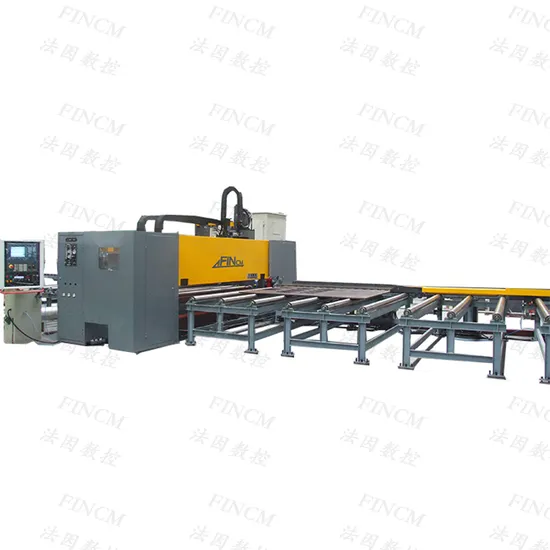

BHD1206C/3 FINCM Steel Structure H-Beam CNC Hydraulic High Speed Drilling Machine
BHD1206C/3 CNC high speed drilling machine for H-beams.and channel-beam steel.The drilling machine is mainly composed of several main parts such as a bed, a CNC sliding table (3), a drilling headstock (3), a clamping device, a detection device, a cooling system, and an iron filing box.
Machine advantages:
1. The bed is welded by square steel pipes. The structure of the bed is strengthened in the place where the force is large, and the artificial aging treatment is carried out, which well guarantees the stability of the bed and the entire machine tool. Accuracy.
2. There are 3 numerical control sliding tables, and 6 numerical control axes on the three sliding tables. Each numerical control axis is guided by a precision linear rolling guide to ensure its positioning accuracy.
3. There are 3 drilling spindle boxes, which can be drilled individually or at the same time.
4. The main shaft adopts a precision main shaft, which has high rotation accuracy and good rigidity; it is driven by a variable-frequency speed-regulating motor, which has a wide range of applications. The speed can be continuously variable in a large range to meet various speed requirements.
5. The work piece is fixed by hydraulic clamping.
6. This machine is equipped with workpiece width detection and web height detection devices, which can effectively compensate the deformation of the workpiece and ensure the processing accuracy.
7. The machine tool adopts trolley feeding, which overcomes the influence of the deformation and surface quality of the workpiece itself, and the feeding accuracy is higher and more stable.
8. Cooling system: It adopts aerosol cooling, which has the functions of internal cooling and external cooling. Each drilling headstock is equipped with its own external cooling nozzle and internal cooling joint, which can be selected according to the drilling needs, internal cooling and external cooling. Cold can be used alone or at the same time.
9. Chip collection box: It is guided by universal casters, which is simple and convenient to carry.
10. Electrical system: PLC and servo drive are connected by bus, which has strong anti-interference ability and faster signal processing, which greatly shortens the system response time and improves production efficiency. Detailed Photos

Product Parameters

H beam	section height H	150~1250mm
	flange width B	75~600mm
U beam	section height H	150~1250mm
	flange width B	75~300mm
drillig power head	Max. width of work piece	80mm
	Number	3
	Max. drilling diameter	Carbide drillφ30mm/ H.S.S.φ40mm
	spindle taper hole	BT40
	spindle motor power	3×11KW
	spindle speed(variable speed)	0~2000r/min 4,CNC axis:
CNC axis	Number	7
	Power of feeding axis servo motor located on fixed side, movable side and middle side	3×2KW
	Power of positioning axis servo motor located on fixed side, movable side and middle side	3×1.5KW
	Speed of 3 positioning CNC axes	0~10m/min
	Speed of 3 feeding CNC axes	0~5m/min
	Inspecting travel of web width	1100mm
	Inspecting travel of web height	290mm
	Centralized automatic lubrication	1 set
conveying cart	Power of conveying cart servo motor	5 KW
	Max. conveying speed	20m/min
	Max. conveying weight	10t
,spray cooling system	Nozzle number	3
	Pressure of compressed air	0.5Mpa
	Cooling model	Internal cooling + external cooling
	Machine appearance size(L×W×H)	About 6.0×2.1×3.4m
	Machine weight	About 8000Kg

List of the Key Outsourced Components:

NO.	Name	Band	Country
1	Principal Axis	Kenturn	Taiwan(China)
2	Linear rolling guide pair	HIWIN/CSK	Taiwan(China)
3	Hydraulic pump	Justmark	Taiwan(China)
4	Electromagnetic hydraulic valve	ATOS	Italy / Japan
5	Servo motor	Siemens / MITSUBISHI	Germany / Japan
6	Servo driver	Siemens / MITSUBISHI	Germany / Japan
7	Programmable controller	Siemens / MITSUBISHI	Germany / Japan
8	Computer	Lenovo	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
